MMF003153
ObsoleteMicro-Measurements (Division of Vishay Precision Group)

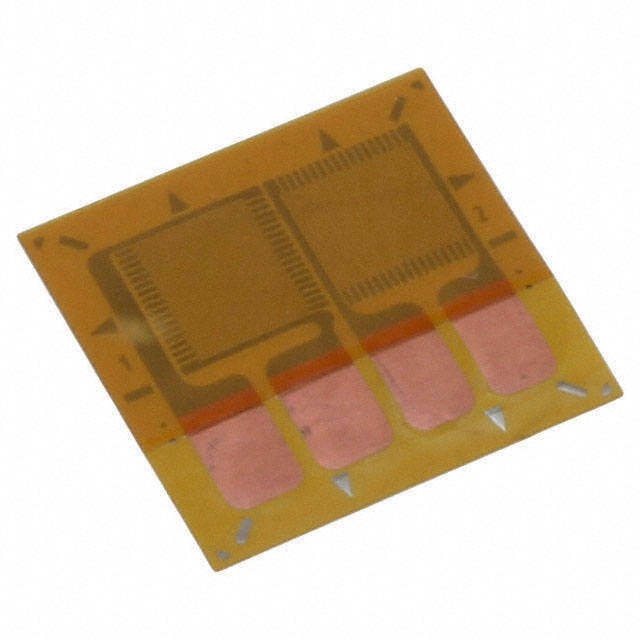

STRAIN GAUGE 350 OHM TEE 1=5PC
MMF003153
ObsoleteMicro-Measurements (Division of Vishay Precision Group)
STRAIN GAUGE 350 OHM TEE 1=5PC
Description
General part information
MMF003153
Tee Rosette Strain Gauge ±5% 0.125" (3.18mm) per section 0.165" (4.19mm) per section
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF003153 |
|---|---|
| Length - Active (per section) | 0.125 in |
| Length - Overall | 0.42 in |
| Length - Overall Pattern | 0.325 in |
| Length - Overall Pattern (mm) | 8.26 mm |
| Operating Temperature (Max) | 350 °F |
| Operating Temperature (Min) | -100 °F |
| Pattern Type | Tee Rossette |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.4 % |
| Strain Range | 5 % |
| Width - Active | 0.165 in |
| Width - Overall | 0.45 in |
| Width - Overall Pattern | 0.365 in |
