1410140-2

Active

TE Connectivity AMP Connectors

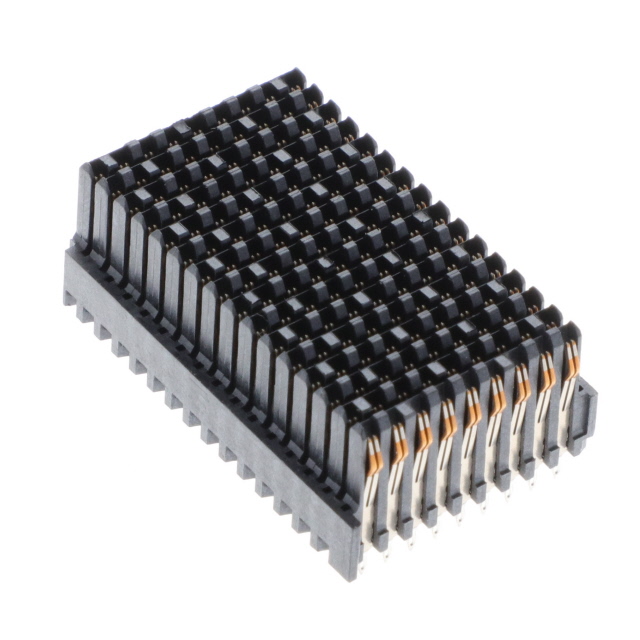

CONN RCPT VITA46 144POS PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT VITA46 144POS PCB

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1410140-2	1410140 Series

Color	Black	Black
Connector Style	VITA 46, Center	VITA 46, Center
Connector Type	Receptacle, Female Blade Sockets	Receptacle, Female Blade Sockets
Connector Usage	Backplane	Backplane
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Columns	16	16
Number of Positions	144	144
Number of Positions Loaded	All	All
Number of Rows	9	9
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.071 in	0.071 in
Pitch [x]	1.8 mm	1.8 mm
Termination	Press-Fit	Press-Fit

CONN RCPT VITA46 144POS PCB

Part	Contact Finish	Material Flammability Rating	Number of Positions Loaded	Color	Connector Style	Connector Usage	Number of Positions	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows	Pitch [x]	Pitch [x]	Number of Columns	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 1410140-2	Gold	UL94 V-0	All	Black	Center, VITA 46	Backplane	144	Press-Fit	50 µin	1.27 µm	Through Hole	9	0.071 in	1.8 mm	16	Receptacle, Female Blade Sockets	105 ░C	-55 °C
TE Connectivity AMP Connectors 1410140-1	Gold	UL94 V-0	All	Black	Center, VITA 46	Backplane	144	Press-Fit	50 µin	1.27 µm	Through Hole	9	0.071 in	1.8 mm	16	Receptacle, Female Blade Sockets	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

144 Connector Receptacle, Female Blade Sockets Through Hole Black VITA 46, Center
