Description
General part information

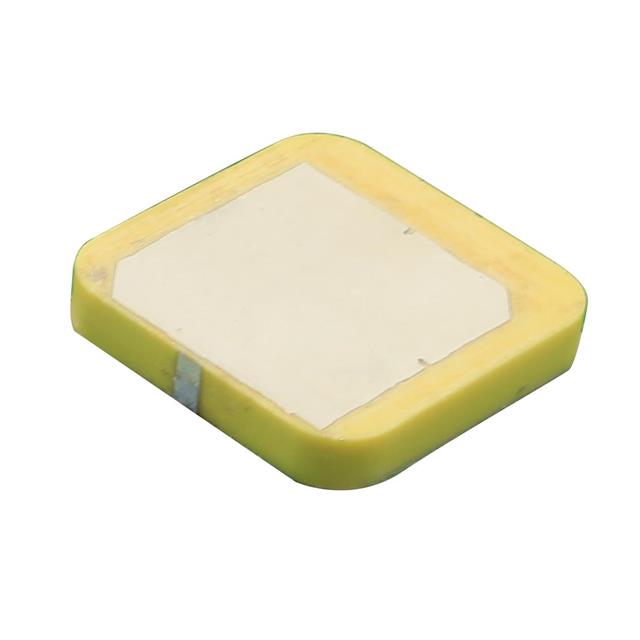

YCGS006AA
RF ANTENNA GNSS, LTE Ceramic Patch Solder Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | YCGS006AA |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GNSS, LTE |
| Frequency (Center/Band) | 1.583 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.606 GHz |
| Frequency Range (Min) | 1.56 GHz |
| Height (Max) | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | Solder |
