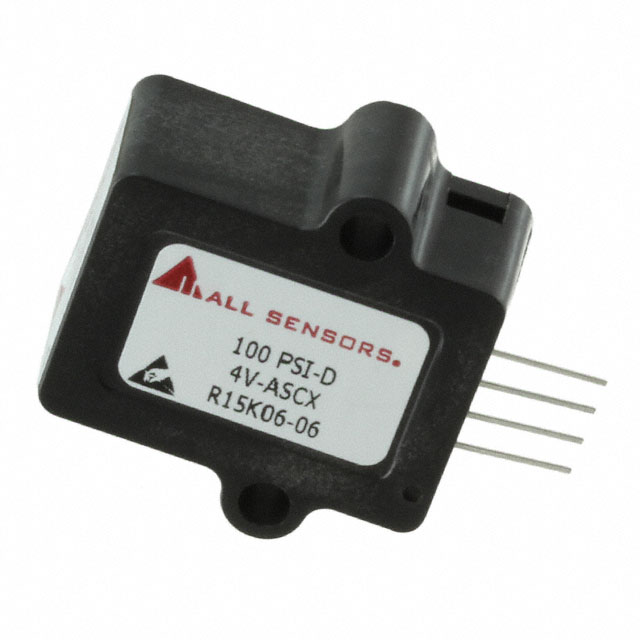

100 PSI-D-4V-ASCX

Active

Amphenol All Sensors Corporation

SENSOR 100PSID 0.19" 4.75V 4SIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

100 PSI-D-4V-ASCX

Active

Amphenol All Sensors Corporation

SENSOR 100PSID 0.19" 4.75V 4SIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	100 PSI-D-4V-ASCX	D-4V-ASCX Series

Accuracy	0.5 %	0.5 %
Applications	Board Mount	Board Mount
Features	Temperature Compensated, Amplified Output	Temperature Compensated, Amplified Output
Maximum Pressure	1034.21 kPa	34.47 - 1034.21 kPa
Maximum Pressure	150 PSI	5 - 150 PSI
Mounting Type	Through Hole	Through Hole
Operating Pressure	100 PSI	5 - 100 PSI
Operating Pressure	689.48 kPa	34.47 - 689.48 kPa
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Output [Max]	4.75 V	4.75 V
Output [Min]	0.25 V	0.25 V
Output Type	Wheatstone Bridge	Wheatstone Bridge
Package / Case	4-SIP	4-SIP
Port Size	4.826 mm, 4.8 mm	4.8 - 4.826 mm
Port Size	Male, Tube, Dual	Male, Tube, Dual
Port Style	Barbless	Barbless
Pressure Type	Differential	Differential
Supplier Device Package	4-SIP	4-SIP
Termination Style	PC Pin	PC Pin
Voltage - Supply [Max]	5.5 V	5.5 V
Voltage - Supply [Min]	4.5 V	4.5 V

D-4V-ASCX Series

SENSOR 15PSID 0.19" 4.75V 4SIP

Part	Maximum Pressure	Maximum Pressure	Features	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Output Type	Package / Case	Mounting Type	Operating Pressure	Operating Pressure	Output [Max]	Output [Min]	Supplier Device Package	Port Size	Port Size	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Accuracy	Port Style
Amphenol All Sensors Corporation 15 PSI-D-4V-ASCX	45 PSI	310.26 kPa	Amplified Output, Temperature Compensated	Board Mount	4.5 V	5.5 V	Differential	Wheatstone Bridge	4-SIP	Through Hole	103.42 kPa	15 PSI	4.75 V	0.25 V	4-SIP	4.8 mm, 4.826 mm	Dual, Male, Tube	-25 °C	105 ░C	PC Pin	0.5 %	Barbless
Amphenol All Sensors Corporation 30 PSI-D-4V-ASCX	100 PSI	689.48 kPa	Amplified Output, Temperature Compensated	Board Mount	4.5 V	5.5 V	Differential	Wheatstone Bridge	4-SIP	Through Hole	206.84 kPa	30 PSI	4.75 V	0.25 V	4-SIP	4.8 mm, 4.826 mm	Dual, Male, Tube	-25 °C	105 ░C	PC Pin	0.5 %	Barbless
Amphenol All Sensors Corporation 100 PSI-D-4V-ASCX	150 PSI	1034.21 kPa	Amplified Output, Temperature Compensated	Board Mount	4.5 V	5.5 V	Differential	Wheatstone Bridge	4-SIP	Through Hole	689.48 kPa	100 PSI	4.75 V	0.25 V	4-SIP	4.8 mm, 4.826 mm	Dual, Male, Tube	-25 °C	105 ░C	PC Pin	0.5 %	Barbless
Amphenol All Sensors Corporation 5 PSI-D-4V-ASCX	15 PSI	103.42 kPa	Amplified Output, Temperature Compensated	Board Mount	4.5 V	5.5 V	Differential	Wheatstone Bridge	4-SIP	Through Hole	34.47 kPa	5 PSI	4.75 V	0.25 V	4-SIP	4.8 mm, 4.826 mm	Dual, Male, Tube	-25 °C	105 ░C	PC Pin	0.5 %	Barbless
Amphenol All Sensors Corporation 1 PSI-D-4V-ASCX	5 PSI	34.47 kPa	Amplified Output, Temperature Compensated	Board Mount	4.5 V	5.5 V	Differential	Wheatstone Bridge	4-SIP	Through Hole			4.75 V	0.25 V	4-SIP	4.8 mm, 4.826 mm	Dual, Male, Tube	-25 °C	105 ░C	PC Pin	0.5 %	Barbless

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.55
		10	$ 87.15

Description

General part information

D-4V-ASCX Series

Pressure Sensor ±100PSI (±689.48kPa) Differential Male - 0.19" (4.8mm) Tube, Dual 0.25 V ~ 4.75 V 4-SIP

Documents

Technical documentation and resources
