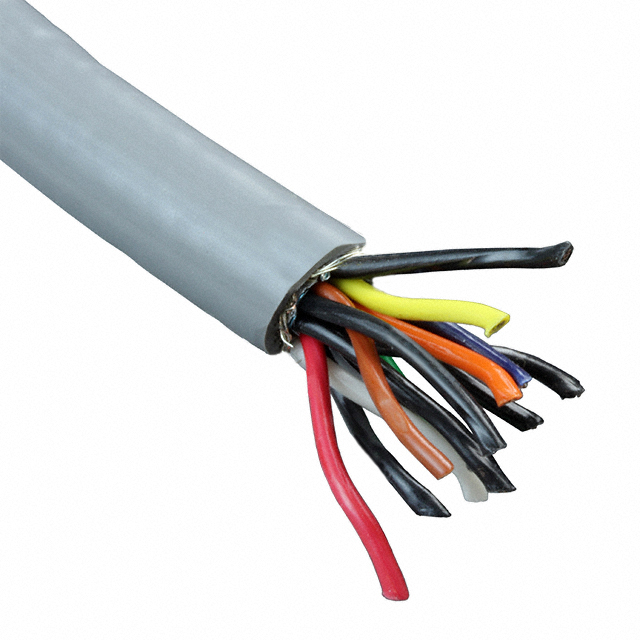

8307 060100 - 8(307,459)-060100

8307 060100

Active
Belden Inc.

MULTI-PAIR 14COND 22AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
8307 060100 - 8(307,459)-060100

8307 060100

Active
Belden Inc.

MULTI-PAIR 14COND 22AWG

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification8307 060100
Cable TypeMulti-Pair
Conductor InsulationPoly-Vinyl Chloride (PVC)
Conductor MaterialCopper, Tinned
Conductor Strand [custom]7
Conductor Strand [custom]30 AWG
Jacket (Insulation) Diameter [diameter]0.348 in
Jacket (Insulation) Diameter [diameter]8.84 mm
Jacket (Insulation) MaterialPoly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness0.889 mm
Jacket (Insulation) Thickness0.035 in
Jacket ColorChrome
Length [x]30.5 m
Length [x]100 ft
Number of Conductors14
Operating Temperature [Max]80 C
Operating Temperature [Min]-30 ░C
RatingsUL Style 2464
Shield Coverage100 %, 65 %
Shield MaterialCopper, Tinned, Aluminum
Shield TypeFoil, Braid
UsageComputer
Wire Gauge22 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeySpool 100$ 8.57
200$ 8.22
300$ 7.94
500$ 7.65
1000$ 7.53

Description

General part information

8307 Series

14 (7 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil, Braid 100.0' (30.5m)
