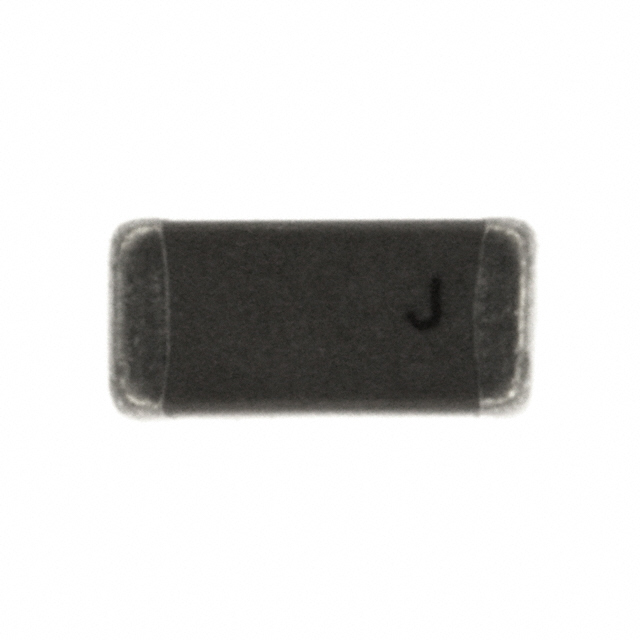

SCDP302G471K4GV001E

Active

JOHANSON DIELECTRICS

CAP CER 470PF 250V C0G 1808

Deep-Dive with AI

Search across all available documentation for this part.

SCDP302G471K4GV001E

Active

JOHANSON DIELECTRICS

CAP CER 470PF 250V C0G 1808

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.69

Description

General part information

SCDP302 Series

470 pF ±10% 250VAC Ceramic Capacitor C0G, NP0 1808 (4520 Metric)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SCDP302G471K4GV001E	SCDP302 Series

Applications	Safety	Safety
Capacitance	470 pF	0.001 - 470 pF
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1808	1808
Package / Case	4520 Metric	4520 Metric
Ratings	X2	X2
Size / Dimension [x]	0.185 in	0.185 in
Size / Dimension [x]	4.7 mm	4.7 mm
Size / Dimension [y]	2.03 mm	2.03 mm
Size / Dimension [y]	0.08 in	0.08 in
Temperature Coefficient	NP0, C0G	NP0, C0G, X7R
Thickness (Max)	2.16 mm	2.16 mm
Thickness (Max) [Max]	0.085 in	0.085 in
Tolerance	10 %	5 - 10 %
Voltage - Rated	250 VAC	250 VAC

SCDP302 Series

CAP CER 18PF 250VAC C0G/NP0 1808

Part	Thickness (Max)	Thickness (Max) [Max]	Package / Case	Package / Case	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Applications	Mounting Type	Voltage - Rated	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Tolerance
JOHANSON DIELECTRICS SCDP302G180J4GV001E	2.16 mm	0.085 in	1808	4520 Metric	C0G, NP0	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	18 pF	-55 °C	125 °C	X2	5 %
JOHANSON DIELECTRICS SCDP302W471K4GV001E	2.16 mm	0.085 in	1808	4520 Metric	X7R	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	470 pF	-55 °C	125 °C	X2	10 %
JOHANSON DIELECTRICS SCDP302W331K4GV001E	2.16 mm	0.085 in	1808	4520 Metric	X7R	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	330 pF	-55 °C	125 °C	X2	10 %
JOHANSON DIELECTRICS SCDP302W102K4GV001E	2.16 mm	0.085 in	1808	4520 Metric	X7R	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	0.001 µF	-55 °C	125 °C	X2	10 %
JOHANSON DIELECTRICS SCDP302G151K4GV001E	2.16 mm	0.085 in	1808	4520 Metric	C0G, NP0	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	150 pF	-55 °C	125 °C	X2	10 %
JOHANSON DIELECTRICS SCDP302G100J4GV001E	2.16 mm	0.085 in	1808	4520 Metric	C0G, NP0	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	10 pF	-55 °C	125 °C	X2	5 %
JOHANSON DIELECTRICS SCDP302G471K4GV001E	2.16 mm	0.085 in	1808	4520 Metric	C0G, NP0	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	470 pF	-55 °C	125 °C	X2	10 %
JOHANSON DIELECTRICS SCDP302W221K4GV001E	2.16 mm	0.085 in	1808	4520 Metric	X7R	0.185 in	2.03 mm	4.7 mm	0.08 in	Safety	MLCC, Surface Mount	250 VAC	220 pF	-55 °C	125 °C	X2	10 %
