Description
General part information
NA1036F2B5-761

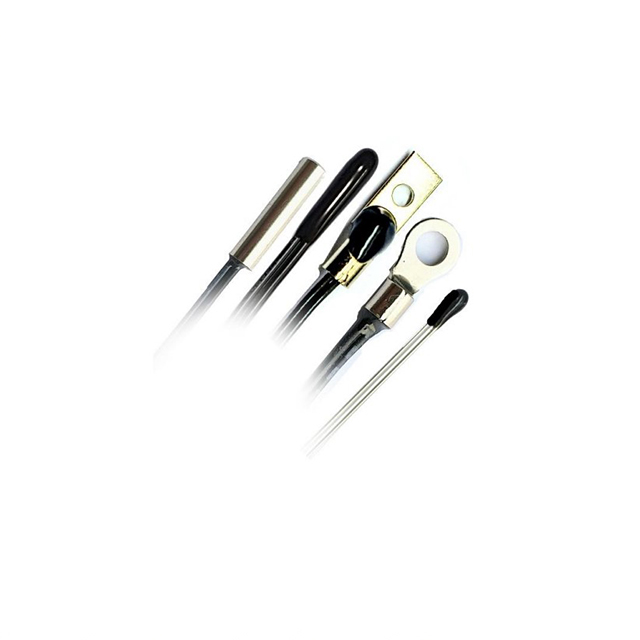

NTC Thermistor 10k Bead, Epoxy
Technical Specifications
Parameters and characteristics for this part
| Specification | NA1036F2B5-761 |
|---|---|
| B Value (25/85) | 3978 K |
| B Value Tolerance | 1 % |
| Length - Lead Wire | 29.92 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead, Epoxy |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
