SSB2-24G09-4090-00

Active

New Energy

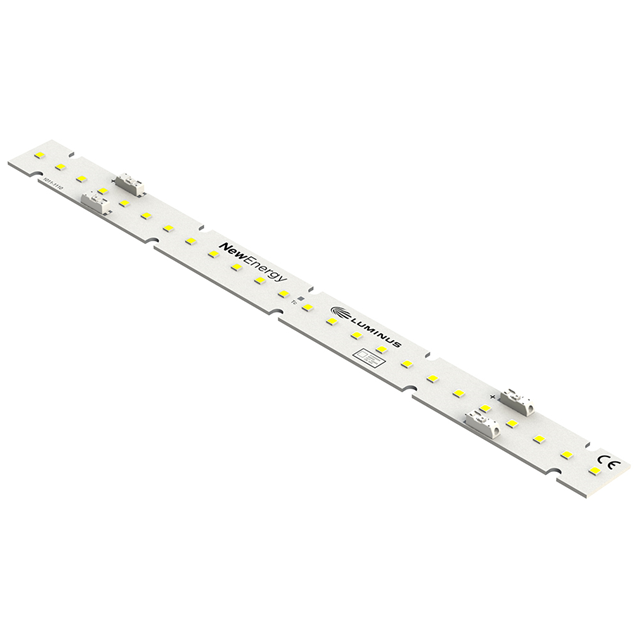

LED MOD SSB2 WHT LNR STRP 4000K

Search across all available documentation for this part.

Active

New Energy

LED MOD SSB2 WHT LNR STRP 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSB2-24G09-4090-00	SSB2-24 Series

CCT (K)	4000 K	4000 - 5000 K
Color	Neutral, White	Cool, White, Neutral
Configuration	Linear Light Strip	Linear Light Strip
CRI (Color Rendering Index)	90	90
Current - Max [Max]	480 mA	480 mA
Current - Test	180 mA	180 mA
Height [z]	6 mm	6 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	159 lm/W	159 lm/W
Luminous Flux @ Current/Temperature	912 lm	912 lm
Size / Dimension [x]	279.5 mm	279.5 mm
Size / Dimension [y]	22 mm	22 mm
Type	LED Module	LED Module
Voltage - Forward (Vf) (Typ)	31.8 V	31.8 V

LED MOD SSB2 WHT LNR STRP 5000K

Part	Height [z]	Type	Voltage - Forward (Vf) (Typ)	Lens Type	Configuration	Color	Size / Dimension [y]	Size / Dimension [x]	Current - Max [Max]	Current - Test	CRI (Color Rendering Index)	CCT (K)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
New Energy SSB2-24G09-5090-00	6 mm	LED Module	31.8 V	Flat	Linear Light Strip	Cool, White	22 mm	279.5 mm	480 mA	180 mA	90	5000 K	912 lm	159 lm/W
New Energy SSB2-24G09-4090-00	6 mm	LED Module	31.8 V	Flat	Linear Light Strip	Neutral, White	22 mm	279.5 mm	480 mA	180 mA	90	4000 K	912 lm	159 lm/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module SSB2, New Energy™ White, Neutral Linear Light Strip
