EZ-300-NMH-X

Active

Amphenol Times Microwave Systems

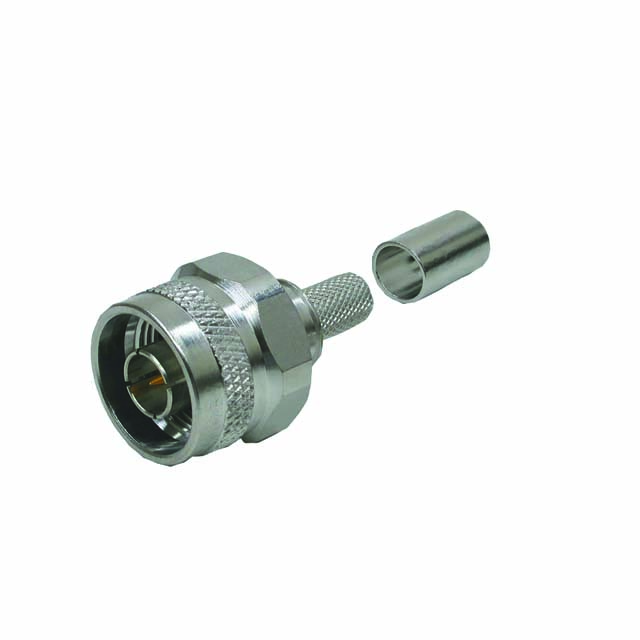

N-MALE (PLUG) CRIMP CONNECTOR (N

Deep-Dive with AI

Search across all available documentation for this part.

EZ-300-NMH-X

Active

Amphenol Times Microwave Systems

N-MALE (PLUG) CRIMP CONNECTOR (N

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EZ-300-NMH-X	EZ-300 Series

Body Finish	White Bronze	White Bronze, Nickel
Body Material	Brass	Brass
Cable Group	LMR-300	LMR-300, LMR-300-75
Center Contact Material	Beryllium Copper	Beryllium Copper, Brass, Phosphor Bronze
Center Contact Plating	Gold	Gold
Connector Style	N Type	7/16 DIN, N Type, 4.3/10, F Type, TNC
Connector Type	Male Pin, Plug	Male Pin, Plug, Female Socket, Jack
Contact Termination	Push On	Push On, Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz	2 - 6000 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 - 75 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	155 °C	85 - 155 °C
Operating Temperature [Min]	-55 °C	-55 - -40 °C
Shield Termination	Crimp	Crimp
Voltage Rating	500 V	500 - 1000 V

EZ-300 Series

7/16-MALE (PLUG) CRIMP CONNECTOR

Part	Mounting Type	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Contact Termination	Cable Group	Center Contact Plating	Impedance	Shield Termination	Number of Ports	Housing Color	Connector Type	Center Contact Material	Mating Cycles	Body Material	Body Finish	Dielectric Material	Voltage Rating
Amphenol Times Microwave Systems EZ-300-716M-X	Free Hanging (In-Line)	7/16 DIN	85 °C	-40 °C	7.5 GHz	Push On	LMR-300	Gold	50 Ohms	Crimp	1	Silver	Male Pin, Plug
Amphenol Times Microwave Systems EZ-300-NMH-X	Free Hanging (In-Line)	N Type	155 °C	-55 °C	6000 MHz	Push On	LMR-300	Gold	50 Ohms	Crimp	1	Silver	Male Pin, Plug	Beryllium Copper	500	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	500 V
Amphenol Times Microwave Systems EZ-300-4310M-X	Free Hanging (In-Line)	4.3/10	85 °C	-40 °C	6000 MHz	Push On	LMR-300	Gold	50 Ohms	Crimp	1	Silver	Male Pin, Plug
Amphenol Times Microwave Systems EZ-300-FMH-75	Free Hanging (In-Line)	F Type	85 °C	-40 °C	2 GHz	Push On	LMR-300-75	Gold	75 Ohms	Crimp	1	Silver	Male Pin, Plug	Brass		Brass	Nickel	Polytetrafluoroethylene (PTFE)	500 V
Amphenol Times Microwave Systems EZ-300-NM-75	Free Hanging (In-Line)	N Type	85 °C	-40 °C	2 GHz	Push On	LMR-300-75	Gold	75 Ohms	Crimp	1	Silver	Male Pin, Plug	Brass		Brass	Nickel	Polytetrafluoroethylene (PTFE)	1000 VDC
Amphenol Times Microwave Systems EZ-300-TM-X	Free Hanging (In-Line)	TNC	125 °C	-55 °C	6000 MHz	Push On	LMR-300	Gold	50 Ohms	Crimp	1	Silver	Male Pin, Plug	Beryllium Copper	500	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	500 V
Amphenol Times Microwave Systems EZ-300-NF-X	Free Hanging (In-Line)	N Type	155 °C	-55 °C	6000 MHz	Solder	LMR-300	Gold	50 Ohms	Crimp	1	Silver	Female Socket, Jack	Phosphor Bronze	500	Brass	White Bronze	Polytetrafluoroethylene (PTFE)	500 V
Amphenol Times Microwave Systems EZ-300-716M-RA-X	Free Hanging (In-Line), Right Angle	7/16 DIN	85 °C	-40 °C	7.5 GHz	Push On	LMR-300	Gold	50 Ohms	Crimp	1	Silver	Male Pin, Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	19	$ 17.44

Description

General part information

EZ-300 Series

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
