83202858
ActiveMurrplastik Systems, Inc.
CORRUGATED CONDUIT, CRUSH RESIST
83202858
ActiveMurrplastik Systems, Inc.
CORRUGATED CONDUIT, CRUSH RESIST
Description
General part information
83202858

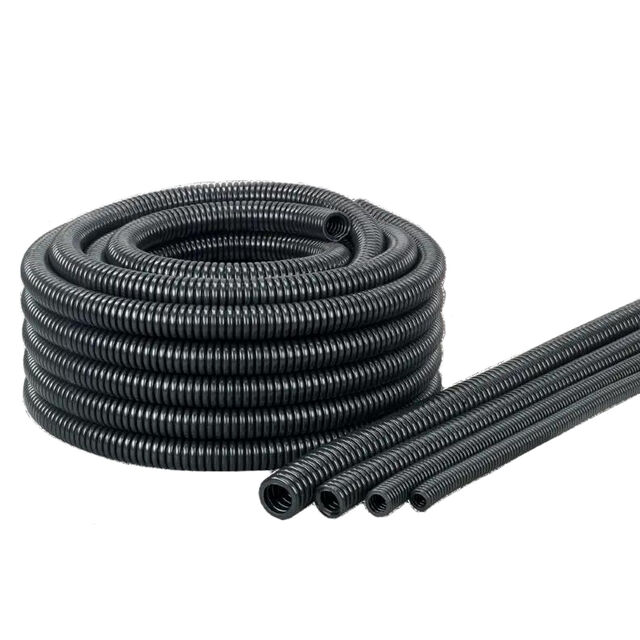

Black Polypropylene (PP) Convoluted, Corrugated Wire Loom, Protective Hose 0.728" (18.50mm) 164' (50.00m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 83202858 |
|---|---|
| Color | Black |
| Diameter - Inside | 0.728 in |
| Diameter - Outside | 1.106 in |
| Environment Protection | UV Resistant |
| Length | 164 ft |
| Liquid Protection | Oil Resistant, Fuel Resistant, Fluid Resistant |
| Material | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-2 |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Type | Protective Hose, Wire Loom |
| Type Attributes | Convoluted, Corrugated |
