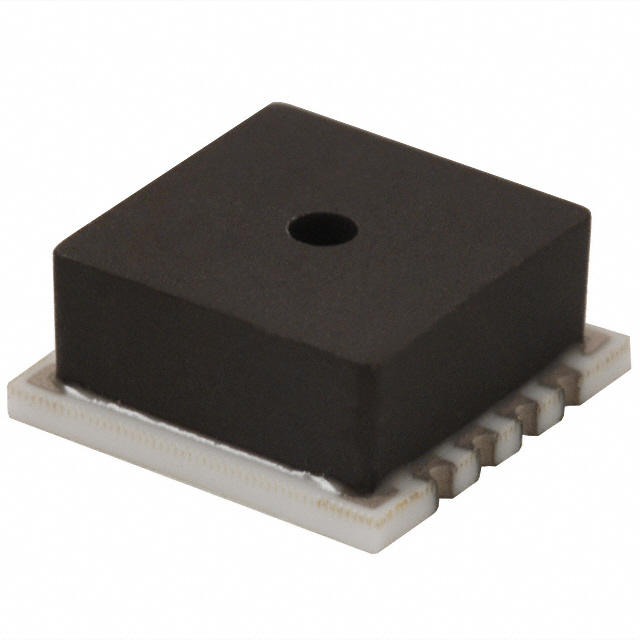

SCC30ASMT
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 30PSIA .15V
SCC30ASMT
ObsoleteHoneywell Sensing and Productivity Solutions
SENSOR 30PSIA .15V
Description
General part information
SCC30ASMT
Pressure Sensor 30PSI (206.84kPa) Absolute 60 mV ~ 150 mV 8-SMD Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SCC30ASMT |
|---|---|
| Accuracy | 0.005 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 60 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 30 PSI |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Wheatstone Bridge |
| Output Voltage (Max) | 150 mV |
| Output Voltage (Min) | 60 mV |
| Package / Case | 8-SMD Module |
| Port Style | No Port |
| Pressure Type | Absolute |
| Termination Style | SMD (SMT) Tab |
