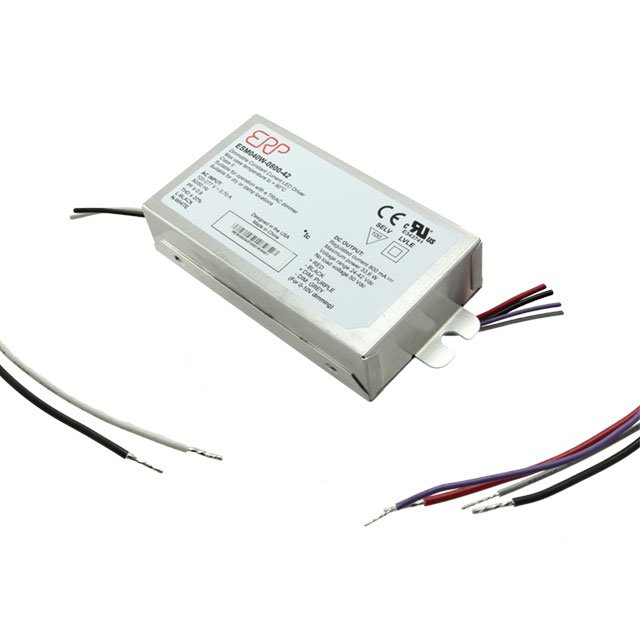

ESM040W-0800-42

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 800MA

Search across all available documentation for this part.

Active

ERP Power, LLC

LED DRIVER CC AC/DC 28-42V 800MA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

800mA 28 ~ 42V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources

Parameters and characteristics commom to parts in this series

LED DRIVER CC AC/DC 28-42V 800MA

Part	Topology	Weight	Weight	Voltage - Output [Min]	Voltage - Output [Max]	Features	Mounting Type	Termination Style	Number of Outputs	Efficiency	Voltage - Input (Min) [Min]	Approval Agency	Power (Watts)	Dimming	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Type	Ratings	Current - Output (Max) [Max]
ERP Power, LLC ESM040W-0800-42	AC DC Converter	252 g	0.556 lb	28 V	42 V	OCP, OTP, SCP	Chassis Mount	Wire Leads	1	87 %	120 VAC	CB, CE, cRUcs, cUL, FC, UL	34 W	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	-30 ░C	90 °C	277 VAC	Constant Current	IP20, NEMA 410	800 mA
ERP Power, LLC ESM040W-0900-42	AC DC Converter	252 g	0.556 lb	28 V	42 V	OCP, OTP, SCP	Chassis Mount	Wire Leads	1	87 %	120 VAC	CB, CE, cRUcs, cUL, FC, UL	38 W	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	-30 ░C	90 °C	277 VAC	Constant Current	IP20, NEMA 410	900 mA
ERP Power, LLC ESM040W-0940-43	AC DC Converter	252 g	0.556 lb	32 V	43 V	OCP, OTP, SCP	Chassis Mount	Wire Leads	1	87 %	120 VAC	CB, CE, cRUcs, cUL, FC, UL	40 W	ELV, TRIAC	0.99 in, 25.2 mm	4.2 in, 106.7 mm	2.37 in, 60.3 mm	-30 ░C	90 °C	277 VAC	Constant Current	IP20, IP64, NEMA 410	940 mA
