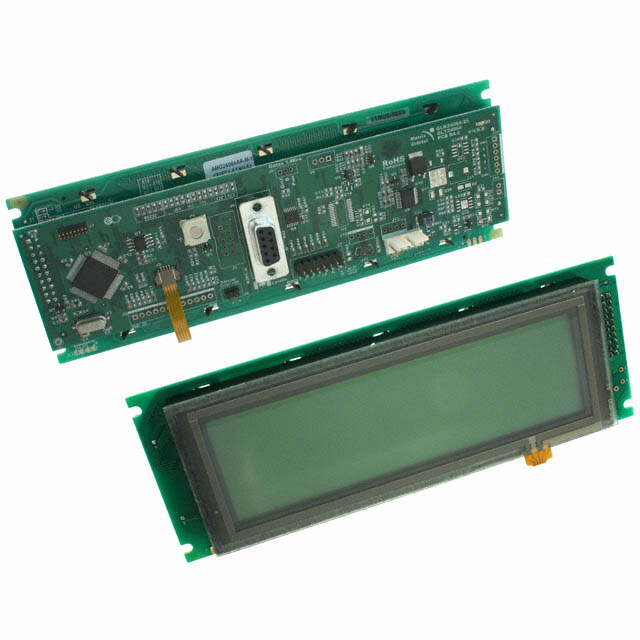

GLT24064
ActiveMatrix Orbital
LCD DISPLAY MONOCHROME 240X64
GLT24064
ActiveMatrix Orbital
LCD DISPLAY MONOCHROME 240X64
Description
General part information
GLT24064
Resistive Graphic LCD Display Module Transmissive Gray Monochrome I2C, RS-232, TTL 240 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | GLT24064 |
|---|---|
| Background Color | Green |
| Backlight Color | Yellow, Green |
| Backlight Type | LED |
| Display Mode | Transmissive |
| Display Type | Monochrome |
| Dot Pitch Height | 0.53 mm |
| Dot Pitch Width | 0.53 mm |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.49 mm |
| Dot Size Width | 0.49 mm |
| Graphics Color | Gray |
| Interface | I2C, TTL, RS-232 |
| Touchscreen | Resistive |
| Viewing Area Height | 39.2 mm |
| Viewing Area Width | 132.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
