Description

General part information

T0052923599

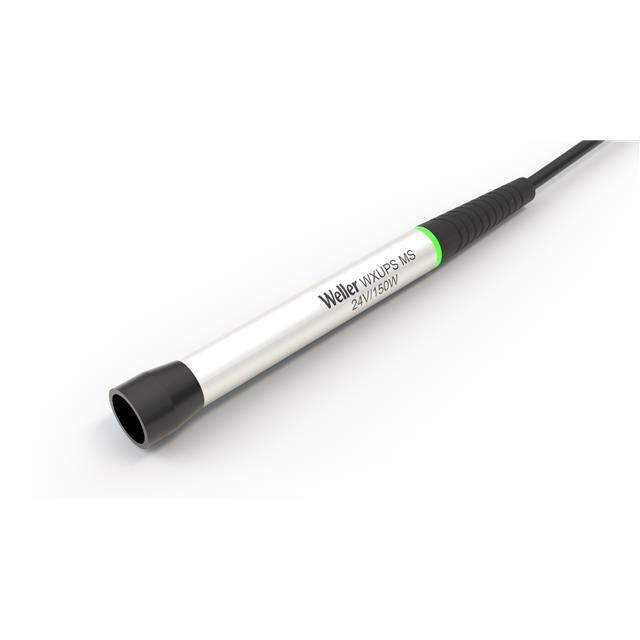

T0052923599 is a WXUPS MS ultra smart soldering iron (handle without tips) with 150W, 24V and covers almost all heavy-duty applications with large component sizes from 1612 and bigger (XL to XXL). The heavy-duty soldering Iron WXUPS uses active tip technology (cartridge) for an optimized heat transfer with 150W maximum power, 24V performance. The extremely fast 7-second heat-up time delivers excellent heat transfer and recovery time during the soldering process for a high-performance continuous work flow. Short tip-to-grip distance provides maximum precision during the soldering process. Identification of the connected tool is fast and simple due to integrated RGB-lights. Easily customize the light colors to your own preference. Thermal core technology provides 150W power, delivering heat through the joint, even providing precisely soldered multilayer boards. Tool compatibility iron for use with RTUS smart soldering tip family and WXsmart soldering station.

Technical Specifications

Parameters and characteristics for this part

SpecificationT0052923599
Power (Watts)150 W
Tip Temperature (Max)842 °F
Tip Temperature (Min)212 °F
Tip TypeNot Included
TypeHandpiece
Voltage - Input24 V
WorkstandNot Included
