SCNRF-6AAP-SAFR
ActiveSuntsu Electronics, Inc

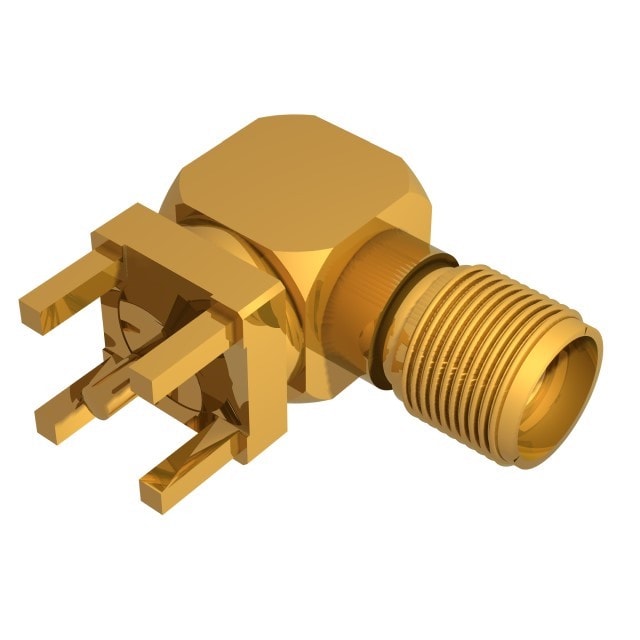

CONN SMA JACK R/A 50 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCNRF-6AAP-SAFR
ActiveSuntsu Electronics, Inc
CONN SMA JACK R/A 50 OHMS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SCNRF-6AAP-SAFR | SCNRF-6AAP Series |
|---|---|---|
| Body Finish | Gold | Gold |
| Body Material | Brass | Brass |
| Center Contact Material | Brass | Brass |
| Center Contact Plating | Gold | Gold |
| Connector Style | SMA | SMA, RP-SMA |
| Connector Type | Female Socket, Jack | Female Socket, Jack |
| Contact Termination | Solder | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz | 6000 MHz |
| Housing Color | Gold | Gold |
| Impedance | 50 Ohms | 50 Ohms |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle, Through Hole |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shield Termination | Solder | Solder |
| Voltage Rating | 335 V | 335 V |
SCNRF-6AAP Series
CONN SMA JACK R/A 50 OHMS
| Part | Housing Color | Impedance | Frequency - Max [Max] | Body Material | Center Contact Plating | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Connector Style | Dielectric Material | Number of Ports | Shield Termination | Center Contact Material | Contact Termination | Connector Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Suntsu Electronics, Inc SCNRF-6AAP-SAFR | Gold | 50 Ohms | 6000 MHz | Brass | Gold | Gold | 85 °C | -55 °C | Through Hole, Right Angle | SMA | Polytetrafluoroethylene (PTFE) | 1 | Solder | Brass | Solder | Female Socket, Jack | 335 V |
Suntsu Electronics, Inc SCNRF-6AAP-RAFR | Gold | 50 Ohms | 6000 MHz | Brass | Gold | Gold | 85 °C | -55 °C | Through Hole, Right Angle | RP-SMA | Polytetrafluoroethylene (PTFE) | 1 | Solder | Brass | Solder | Female Socket, Jack | 335 V |
Suntsu Electronics, Inc SCNRF-6AAP-SAFS | Gold | 50 Ohms | 6000 MHz | Brass | Gold | Gold | 85 °C | -55 °C | Through Hole | SMA | Polytetrafluoroethylene (PTFE) | 1 | Solder | Brass | Solder | Female Socket, Jack | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.67 | |
| 10 | $ 4.49 | |||
| 25 | $ 4.13 | |||
| 50 | $ 3.95 | |||
| 100 | $ 3.76 | |||
Description
General part information
SCNRF-6AAP Series
SMA Connector Jack, Female Socket 50 Ohms Through Hole, Right Angle Solder
