SCRH124-151
ActiveSignal Transformer
FIXED IND 150UH 1.16A 530MOHM SM
SCRH124-151
ActiveSignal Transformer
FIXED IND 150UH 1.16A 530MOHM SM
Description
General part information
SCRH124-151

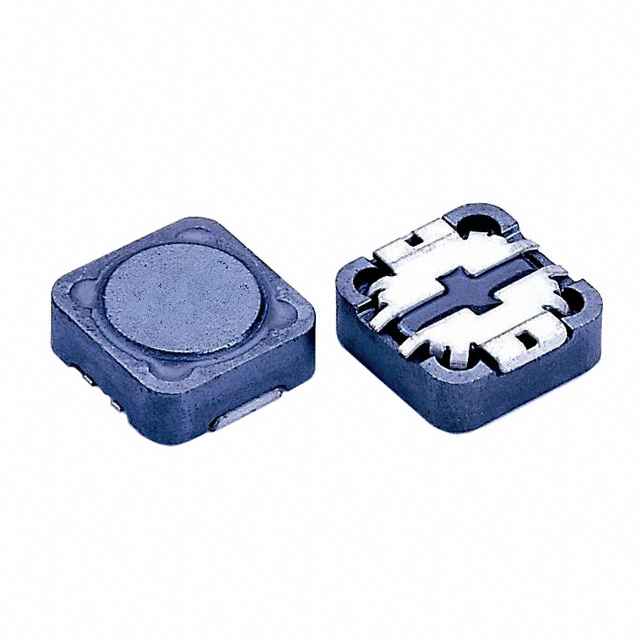

150 µH Shielded Inductor 1.16 A 530mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH124-151 |
|---|---|
| Current - Saturation (Isat) | 0.95 mA |
| Current Rating | 1.16 A |
| DC Resistance (DCR) (Max) | 530 mOhm |
| Height - Seated (Max) | 0.177 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.492 in |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
