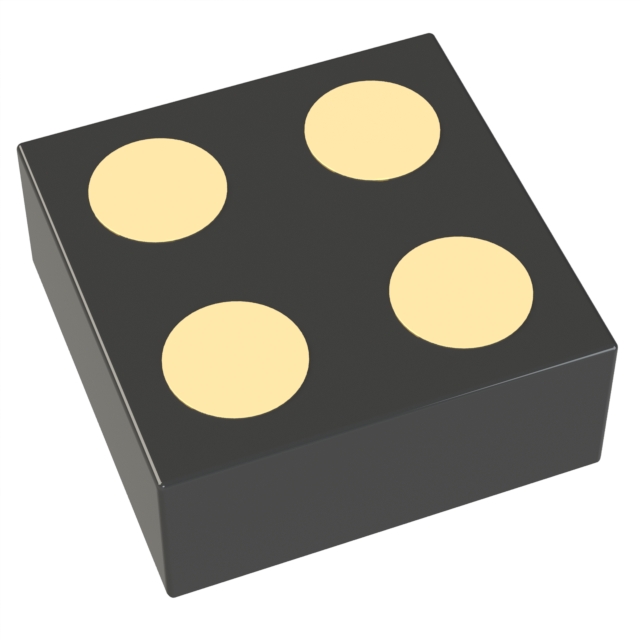

XC6229D3311R-G
ActiveTorex Semiconductor Ltd
IC REG LIN 3.3V 300MA LGA-4B01
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XC6229D3311R-G
ActiveTorex Semiconductor Ltd
IC REG LIN 3.3V 300MA LGA-4B01
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XC6229D3311R-G |
|---|---|
| Control Features | Enable |
| Current - Output | 300 mA |
| Current - Quiescent (Iq) | 220 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | 4-XFLGA |
| Protection Features | Over Current, Over Temperature |
| PSRR | 80 dB |
| Supplier Device Package | LGA-4B01 |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 3.3 V |
| Voltage Dropout (Max) [Max] | 0.26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.18 | |
| 10000 | $ 0.17 | |||
| 25000 | $ 0.16 | |||
| 50000 | $ 0.16 | |||
Description
General part information
XC6229D3311R-G
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA LGA-4B01
