T37011-07-0

Active

Curtis Industries

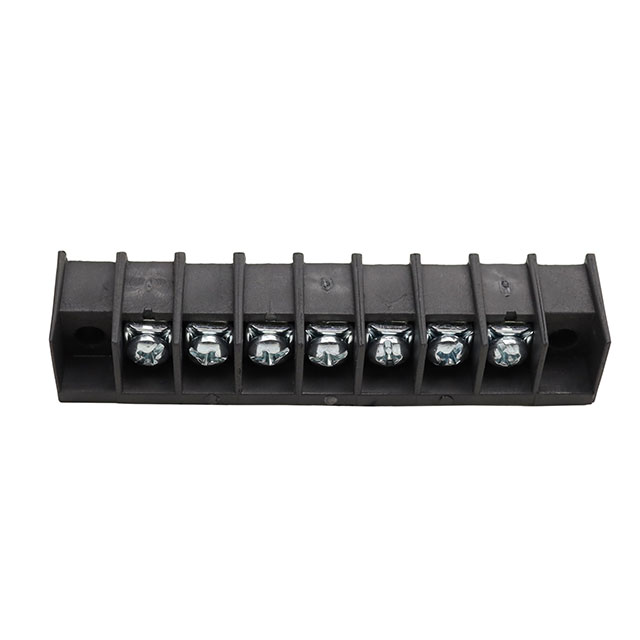

CONN BARRIER STRIP 7CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37011-07-0

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.32
		10	$ 3.29
		25	$ 3.09
		50	$ 2.74
		100	$ 2.68
		250	$ 2.63

Description

General part information

T37011 Series

7 Circuit 0.375" (9.53mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Specification	T37011-07-0	T37011 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	PC Pin	PC Pin
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole	Chassis, Panel, Through Hole
Number of Circuits	7	3 - 21
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	7	3 - 21
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

Part	Number of Circuits	Number of Wire Entries	Bottom Termination	Features	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Material Flammability Rating	Terminal Block Type	Barrier Type	Mounting Type	Top Termination	Number of Rows	Pitch [x]	Pitch [x]	Current Rating (Amps)	Operating Temperature	Number of Circuits [custom]
Curtis Industries T37011-21-0	21	21	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-16-0	16	16	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-03-0	3	3	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-05-0	5	5	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-15-0	15	15	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-04-0	4	4	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-06-0	6	6	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-08-0		8	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C	8
Curtis Industries T37011-07-0	7	7	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
Curtis Industries T37011-11-0	11	11	PC Pin	Flange	Polypropylene (PP)	12 AWG	22 AWG	300 VDC	UL94 V-0	Barrier Block	3 Wall (Tri)	Chassis, Panel, Through Hole	Screws with Captive Plate	1	9.53 mm	0.375 in	20 A	105 C
