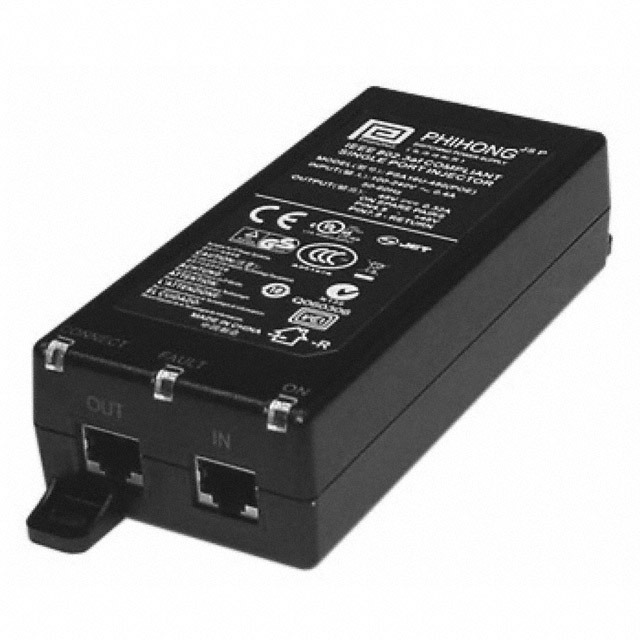

PSA16U-480(POE)
ObsoletePhihong USA
POE INJECTOR 15.4W 48V DESKTOP
PSA16U-480(POE)
ObsoletePhihong USA
POE INJECTOR 15.4W 48V DESKTOP
Description
General part information
PSA16U-480(POE)
48V Power Over Ethernet (POE) 1 Port Midspan Injector Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA16U-480(POE) |
|---|---|
| Approval Agency | VCCI, S-Jet, C-Tick, CCC, CE, cULus, SAA |
| Compliance | IEEE802.3af |
| Current - Output | 0.32 A |
| Efficiency | 65 % |
| Features | OCP, SCP, OTP, OVP |
| Input Connector | IEC 320-C14 (Power), RJ45 (Data) |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 15.4 W |
| Size / Dimension Height | 1.42 in |
| Size / Dimension Length | 5.98 in |
| Size / Dimension Width | 2.56 in |
| Type | Midspan Injector |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 48 V |
| Weight | 0.441 lb |
