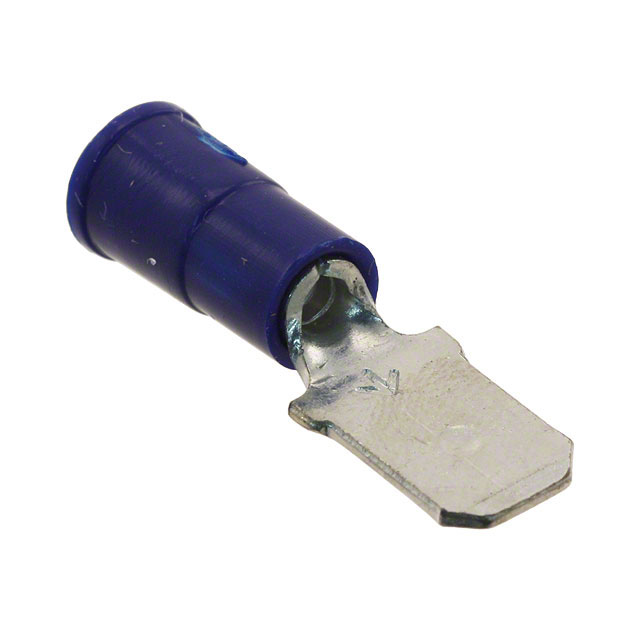

MTV14-250Q
Active3M
MALE DISCONNECT VINYL INS HIGHLAND BAG 25/BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MTV14-250Q
Active3M
MALE DISCONNECT VINYL INS HIGHLAND BAG 25/BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MTV14-250Q | MTV14 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Finish | Tin | Tin |
| Contact Material | ETP, Copper | ETP, Copper |
| Features | Butted Seam | Butted Seam |
| Gender | Male | Male |
| Insulation | Non-Mating End Insulated | Non-Mating End Insulated |
| Length - Overall | 23.62 mm | 23.62 mm |
| Length - Overall [x] | 0.93 in | 0.93 in |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Tab Thickness | 0.032 in | 0.032 in |
| Tab Thickness | 0.81 mm | 0.81 mm |
| Tab Width | 6.35 mm | 6.35 mm |
| Tab Width | 0.25 in | 0.25 in |
| Terminal Type | Standard | Standard |
| Termination | Crimp | Crimp |
MTV14 Series
CONN QC TAB 14-16AWG 0.250 CRIMP
| Part | Gender | Tab Width | Tab Width | Length - Overall [x] | Length - Overall | Features | Terminal Type | Contact Material | Tab Thickness | Tab Thickness | Mounting Type | Termination | Color | Contact Finish | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Male | 6.35 mm | 0.25 in | 0.93 in | 23.62 mm | Butted Seam | Standard | Copper, ETP | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Crimp | Blue | Tin | Non-Mating End Insulated | |
Male | 6.35 mm | 0.25 in | 0.93 in | 23.62 mm | Butted Seam | Standard | Copper, ETP | 0.032 in | 0.81 mm | Free Hanging (In-Line) | Crimp | Blue | Tin | Non-Mating End Insulated |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MTV14 Series
0.250" (6.35mm) Quick Connect Male 14-16 AWG Crimp Connector Non-Mating End Insulated
