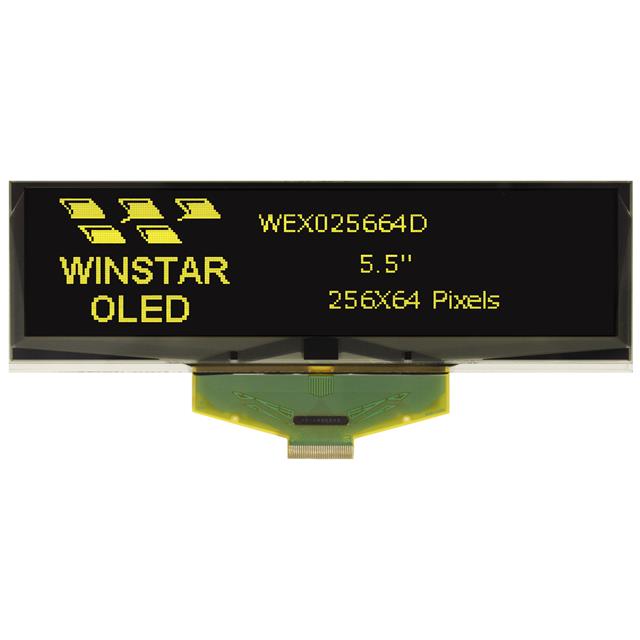

WEX025664DLPP3N00000
ActiveWinstar Display
5.5" PMOLED GRAPHIC TAB YLW
WEX025664DLPP3N00000
ActiveWinstar Display
5.5" PMOLED GRAPHIC TAB YLW
Description
General part information
WEX025664DLPP3N00000
Non-Touch Graphic LCD Display Module Passive Yellow OLED - Passive Matrix MCU 5.5" (139.70mm) 256 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | WEX025664DLPP3N00000 |
|---|---|
| Backlight | Without Backlight |
| Controller Type | SSD1322 |
| Diagonal Screen Size | 5.5 in |
| Display Mode | Passive |
| Display Type | OLED - Passive Matrix |
| Dot Pitch Height | 0.53 mm |
| Dot Pitch Width | 0.53 mm |
| Dot Pixels (Horizontal) | 256 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.5 mm |
| Dot Size Width | 0.5 mm |
| Graphics Color | Yellow |
| Interface | MCU |
| Touchscreen | Non-Touch |
| Viewing Area Height | 35.89 mm |
| Viewing Area Width | 137.65 mm |
