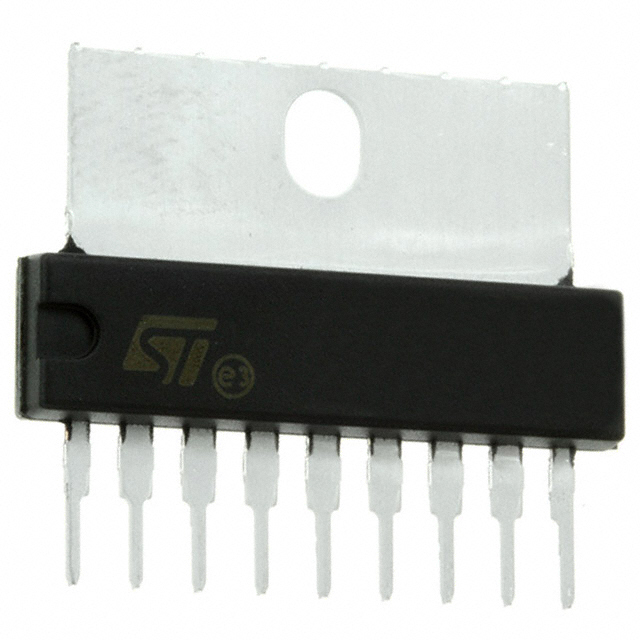

TDA8139
ActiveSTMicroelectronics
IC REG LINEAR POS ADJ 9SIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TDA8139
ActiveSTMicroelectronics
IC REG LINEAR POS ADJ 9SIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TDA8139 |
|---|---|
| Control Features | Reset, Enable |
| Current - Output | 750 mA |
| Current - Quiescent (Iq) | 2 mA |
| Mounting Type | Through Hole |
| Number of Regulators | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | 0 °C |
| Output Configuration | Positive |
| Output Type | Adjustable (Fixed) |
| Package / Case | 9-SIP |
| Supplier Device Package | 9-SIP |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Output (Max) | 16 V |
| Voltage - Output (Min/Fixed) | 5.1 V |
| Voltage - Output (Min/Fixed) [Min] | 2.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
TDA8139 Series
IC REG LINEAR POS ADJ 9SIP
| Part | Current - Output | Voltage - Input (Max) [Max] | Current - Quiescent (Iq) | Number of Regulators | Output Type | Package / Case | Voltage - Output (Min/Fixed) | Voltage - Output (Min/Fixed) [Min] | Output Configuration | Voltage - Output (Max) | Supplier Device Package | Mounting Type | Control Features | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics TDA8139 | 750 mA | 18 V | 2 mA | 2 | Adjustable (Fixed) | 9-SIP | 5.1 V | 2.8 V | Positive | 16 V | 9-SIP | Through Hole | Enable, Reset | 0 °C | 150 °C |
Description
General part information
TDA8139 Series
Linear Voltage Regulator IC Positive Adjustable (Fixed) 2 Output 750mA, 750mA 9-SIP
