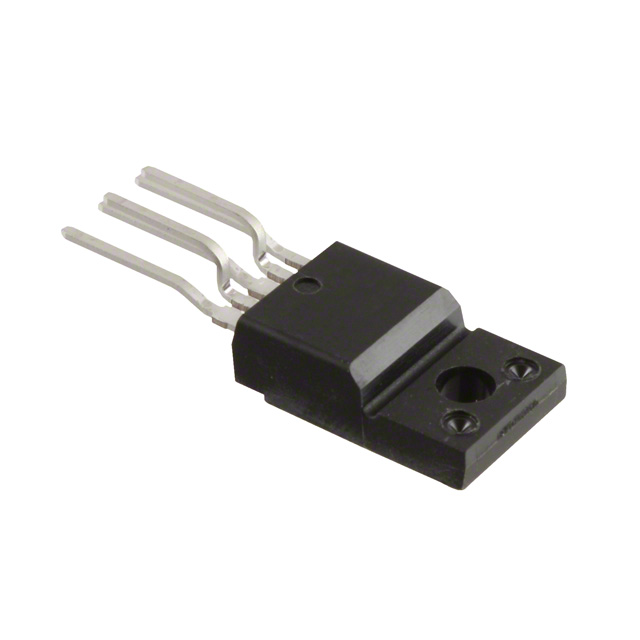

IRFI4024H-117P

Obsolete

Infineon Technologies

MOSFET 2N-CH 55V 11A TO220-5

Search across all available documentation for this part.

Obsolete

Infineon Technologies

MOSFET 2N-CH 55V 11A TO220-5

Technical Specifications

Parameters and characteristics for this part

Specification	IRFI4024H-117P

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	11 A
Drain to Source Voltage (Vdss)	55 V
Gate Charge (Qg) (Max) @ Vgs	13 nC
Input Capacitance (Ciss) (Max) @ Vds	320 pF
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-220-5 Full Pack
Power - Max [Max]	14 W
Rds On (Max) @ Id, Vgs	60 mOhm
Supplier Device Package	TO-220-5 Full-Pak
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	4 V

Part	Drain to Source Voltage (Vdss)	Power - Max [Max]	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs	Current - Continuous Drain (Id) @ 25°C	Configuration	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Package / Case
Infineon Technologies IRFI4024H-117P	55 V	14 W	TO-220-5 Full-Pak	13 nC	4 V	60 mOhm	11 A	2 N-Channel (Dual)	MOSFET (Metal Oxide)	-55 °C	150 °C	320 pF	Through Hole	TO-220-5 Full Pack
