2982236

Active

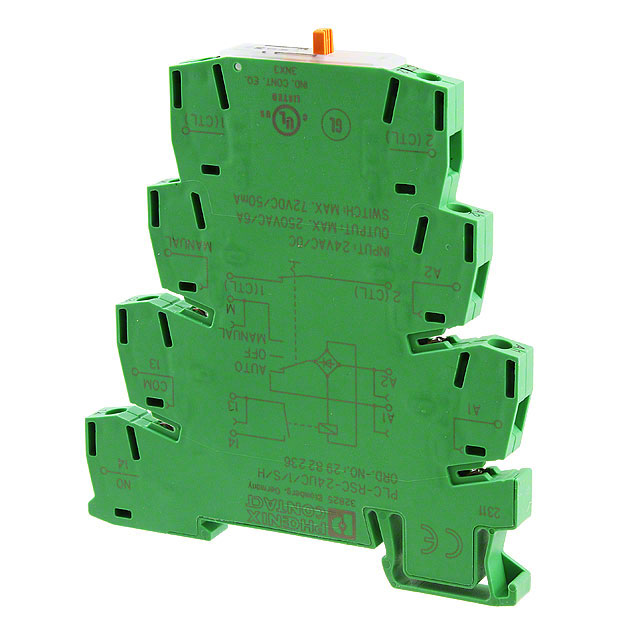

Phoenix Contact

RELAY GEN PURPOSE SPST 6A 24V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPST 6A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2982236	29822 Series

Approval Agency	UKCA, CE	UKCA, CE
Coil Current	11 mA	11 mA
Coil Resistance	2.182 kOhms	2.182 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VAC	24 VAC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	-	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	6 A	6 A
Features	Lighted Indicator, Socket Included	Lighted Indicator, Socket Included
Mounting Type	DIN Rail	DIN Rail
Operate Time	6 ms	6 ms
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Relay Type	General Purpose	General Purpose
Release Time	15 ms	15 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal

RELAY GEN PURPOSE SPST 6A 24V

Part	Mounting Type	Coil Voltage	Coil Current	Features	Switching Voltage	Release Time	Contact Material	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Termination Style	Contact Rating (Current)	Coil Type	Contact Form	Coil Resistance	Approval Agency
Phoenix Contact 2982249	DIN Rail	24 VAC	11 mA	Lighted Indicator	250 VAC, 250 VDC	15 ms	Silver Tin Oxide (AgSnO)	General Purpose	-20 C	60 °C	6 ms	Spring Terminal	6 A	Non Latching	SPST-NO (1 Form A)	2.182 kOhms
Phoenix Contact 2982236	DIN Rail	24 VAC	11 mA	Lighted Indicator, Socket Included	250 VAC, 250 VDC	15 ms		General Purpose	-20 C	60 °C	6 ms	Screw Terminal	6 A	Non Latching	SPST-NO (1 Form A)	2.182 kOhms	CE, UKCA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPST-NO (1 Form A) 24VAC/DC Coil DIN Rail
