Description
General part information

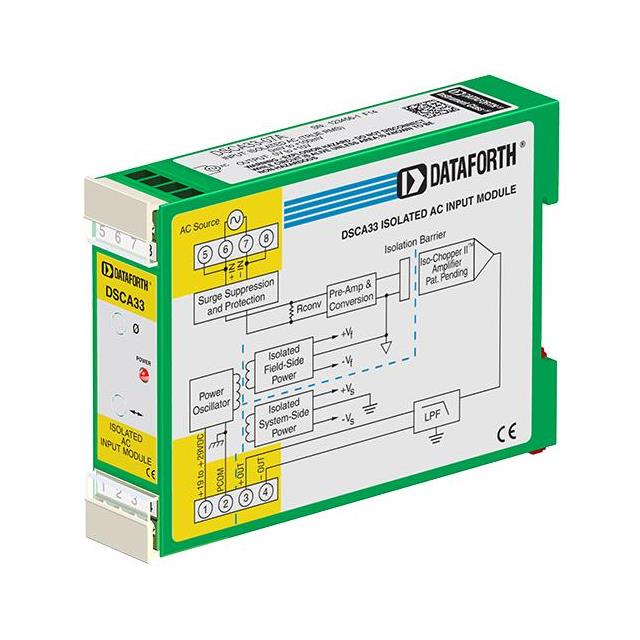

DSCA33-07A
SIGNAL CONDITIONER TRUE RMS DIN
Technical Specifications
Parameters and characteristics for this part
| Specification | DSCA33-07A |
|---|---|
| Input Current Range (Maximum) | 5 A |
| Input Current Range (Minimum) | 0 mA |
| Input Type | Current |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Voltage |
| Output Voltage Range (Max) | 5 V |
| Output Voltage Range (Min) | 0 V |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 29 V |
| Voltage - Supply (Minimum) | 19 V |
