917896-1

Active

TE Connectivity AMP Connectors

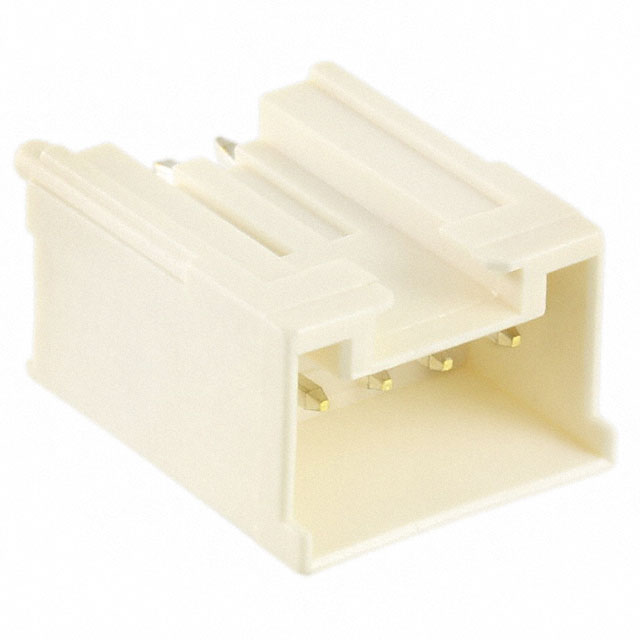

CONN HEADER VERT 4POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	917896-1

Applications	General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.185 in
Contact Length - Mating	4.7 mm
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Natural
Insulation Height	9.8 mm
Insulation Height	0.386 in
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mated Stacking Heights	13.7 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Overall Contact Length	0.41 in
Overall Contact Length	10.41 mm
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	50 V

CONN HEADER VERT 4POS 2.5MM

Part	Current Rating (Amps)	Termination	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shrouding	Voltage Rating	Insulation Color	Overall Contact Length	Overall Contact Length	Mated Stacking Heights	Mounting Type	Contact Length - Post	Contact Length - Post [x]	Features	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Insulation Material	Style	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions	Number of Positions Loaded	Fastening Type	Applications	Insulation Height	Insulation Height	Connector Type	Contact Material
TE Connectivity AMP Connectors 917896-1	3 A	Kinked Pin, Solder	Male Pin	-30 ░C	105 ░C	Square	Shrouded - 4 Wall	50 V	Natural	0.41 in	10.41 mm	13.7 mm	Through Hole	3.2 mm	0.126 in	Board Guide	UL94 V-0	2.5 mm	0.098 in	Polyamide (PA66), Nylon 6/6, Glass Filled	Board to Cable/Wire	1	0.185 in	4.7 mm	Tin	4	All	Latch Holder	General Purpose	9.8 mm	0.386 in	Header	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 4 position 0.098" (2.50mm)
