Description
General part information
00407094

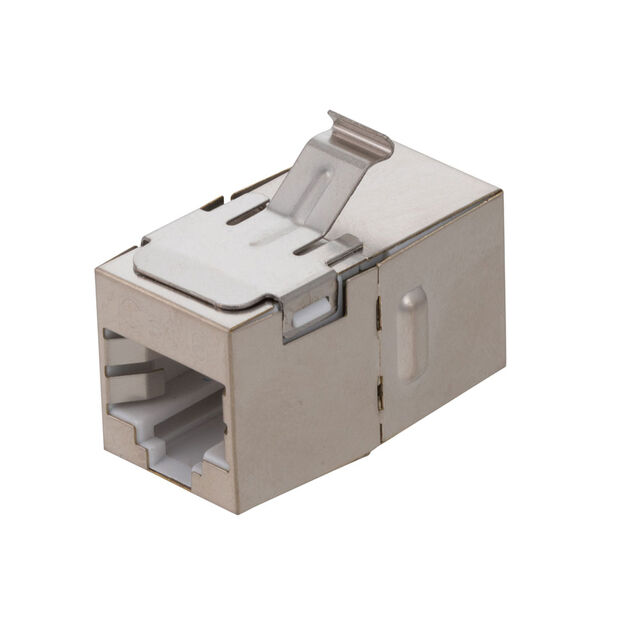

Insert Modular Jack 8p8c (RJ45, Ethernet) To IDC, Pressdown, Punchdown Block Silver
Technical Specifications
Parameters and characteristics for this part
| Specification | 00407094 |
|---|---|
| Current | 20 mOhm |
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 3 µin |
| Exterior Contact Material | Phosphor Bronze |
| Exterior Housing Color | Silver |
| Exterior Housing Material | Polycarbonate (PC) |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Features | Shielded |
| Interior Contact Finish | Zinc |
| Interior Contact Material | Phosphor Bronze |
| Interior Housing Color | Silver |
| Interior Housing Material | Polycarbonate (PC) |
| Interior Type (Adapter End) | IDC, Punchdown Block, Pressdown |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Ratings | Cat6 |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
