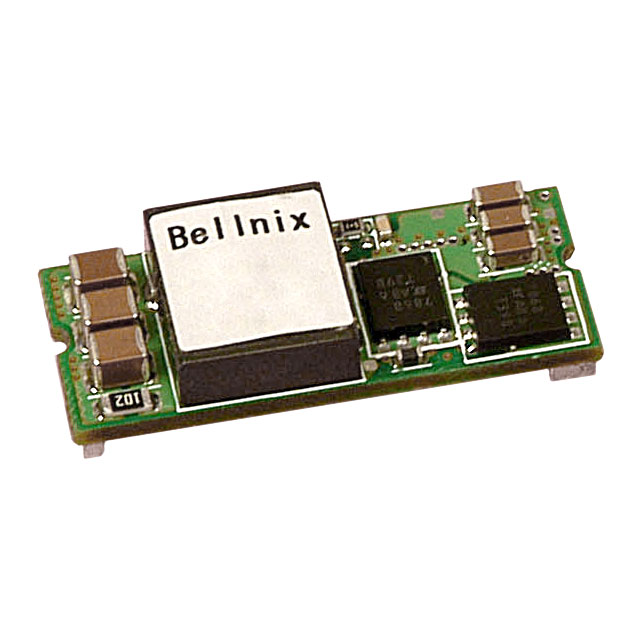

BST04-0.7S06PCM

Obsolete

Bellnix Co., Ltd.

DC DC CONVERTER 0.75-3.3V

Search across all available documentation for this part.

Obsolete

Bellnix Co., Ltd.

DC DC CONVERTER 0.75-3.3V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BST04-0.7S06PCM	BST04 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable
Current - Output (Max) [Max]	6 A	6 - 16 A
Efficiency	94 %	94 - 96 %
Features	Remote On/Off, Adjustable Output	Remote On/Off, Adjustable Output
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	6-SMD Module	7-SMD Module, 6-SMD Module
Size / Dimension [x]	27.9 mm	27.9 - 33 mm
Size / Dimension [x]	1.1 "	1.1 - 1.3 "
Size / Dimension [y]	11.4 mm	11.4 - 13.5 mm
Size / Dimension [y]	0.45 in	0.45 - 0.53 in
Size / Dimension [z]	7.1 mm	7.1 - 8.3 mm
Size / Dimension [z]	0.28 "	0.28 - 0.33 in
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V	5.5 V
Voltage - Input (Min) [Min]	2.8 V	2.8 V
Voltage - Output 1 [Max]	3.3 V	3.3 V
Voltage - Output 1 [Min]	0.75 V	0.75 V

DC DC CONVERTER 0.75-3.3V

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Control Features	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Package / Case	Type	Applications
Bellnix Co., Ltd. BST04-0.7S10PCM	13.5 mm	8.3 mm	1.3 "	33 mm	0.33 in	0.53 in	Adjustable Output, Remote On/Off	1	85 °C	-40 °C	5.5 V	Active High, Enable	96 %	10 A	2.8 V	0.75 V	3.3 V	Surface Mount	7-SMD Module	Non-Isolated PoL Module	ITE (Commercial)
Bellnix Co., Ltd. BST04-0.7S16PCM	13.5 mm	8.3 mm	1.3 "	33 mm	0.33 in	0.53 in	Adjustable Output, Remote On/Off	1	85 °C	-40 °C	5.5 V	Active High, Enable	95 %	16 A	2.8 V	0.75 V	3.3 V	Surface Mount	7-SMD Module	Non-Isolated PoL Module	ITE (Commercial)
Bellnix Co., Ltd. BST04-0.7S06PCM	11.4 mm	7.1 mm	1.1 "	27.9 mm	0.28 "	0.45 in	Adjustable Output, Remote On/Off	1	85 °C	-40 °C	5.5 V	Active High, Enable	94 %	6 A	2.8 V	0.75 V	3.3 V	Surface Mount	6-SMD Module	Non-Isolated PoL Module	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 14.25
	Digi-Reel®	1	$ 14.25
	Tape & Reel (TR)	330	$ 15.39

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.3V 6A 2.8V - 5.5V Input

Technical documentation and resources

No documents available
