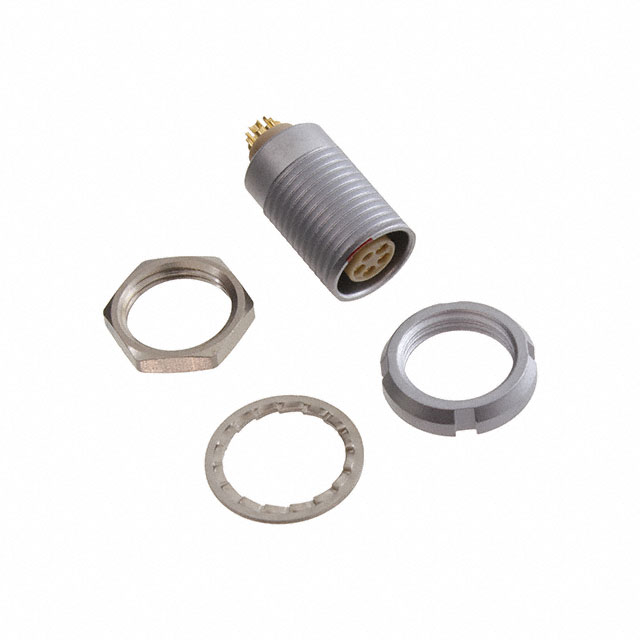

ECG.1B.305.CLL

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ECG.1B.305.CLL

Active

LEMO

CONN RCPT FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.81
		10	$ 24.56

Description

General part information

ECG.1B Series

5 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECG.1B.305.CLL	ECG.1B Series

Color	Silver	Black, Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze
Current Rating (Amps)	9 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Front and Rear Side Nut	Front and Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Number of Positions	-	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	305	302 - 316
Shielding	Shielded	Shielded
Termination	-	Solder, Crimp

ECG.1B Series

CONN RCPT FMALE 6POS GOLD SOLDER

Part	Shell Size - Insert	Color	Material Flammability Rating	Primary Material	Current Rating (Amps)	Contact Finish - Mating	Ingress Protection	Fastening Type	Insert Material	Shielding	Mounting Type	Connector Type	Orientation	Shell Material	Termination	Contact Material	Number of Positions	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Number of Positions
LEMO ECG.1B.306.KLN	306	Black	UL94 V-0	Metal	7 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze	6	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C
LEMO ECG.1B.316.CLV	316	Silver	UL94 V-0	Metal	1.5 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Right Angle, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze		Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome	16
LEMO ECG.1B.314.CLN	314	Silver	UL94 V-0	Metal	2 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze	14	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome
LEMO ECG.1B.304.CLV	304	Silver	UL94 V-0	Metal	6 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Right Angle, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze	4	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome
LEMO ECG.1B.307.KLL	307	Black	UL94 V-0	Metal	7 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded		Receptacle, Female Sockets	G	Brass		Bronze	7	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C
LEMO ECG.1B.310.CLN	310	Silver	UL94 V-0	Metal	2.5 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze	10	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome
LEMO ECG.1B.316.CLN	316	Silver	UL94 V-0	Metal	1.5 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze		Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome	16
LEMO ECG.1B.306.CLN	306	Silver	UL94 V-0	Metal	7 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze	6	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome
LEMO ECG.1B.302.CYM	302	Silver	UL94 V-0	Metal	15 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded		Receptacle, Female Sockets	G	Brass	Crimp	Bronze	2	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome
LEMO ECG.1B.306.CLV	306	Silver	UL94 V-0	Metal	6 A	Gold	IP50	Push-Pull	Polyetheretherketone (PEEK)	Shielded	Panel Mount, Right Angle, Through Hole	Receptacle, Female Sockets	G	Brass	Solder	Bronze	6	Front and Rear Side Nut	59 Áin	1.5 Ám	-55 °C	250 °C	Chrome
