Description
General part information
18FUF92XA

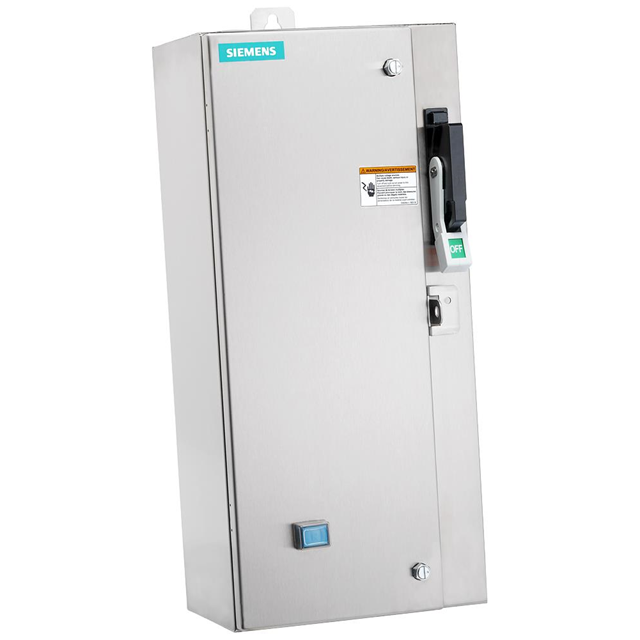

Motor Starter 110 ~ 240VAC Supply 45A 600V Load
Technical Specifications
Parameters and characteristics for this part
| Specification | 18FUF92XA |
|---|---|
| Control / Drive Type | Motor Starter |
| Current - Output | 45 A |
| Motor Type | AC Motor |
| Mounting Type | Chassis Mount |
| Number of Motors | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | -20 °C |
| Type | Module |
| Voltage - Load | 600 V |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 110 VAC |
| Wattage - Load | 18640 W |
