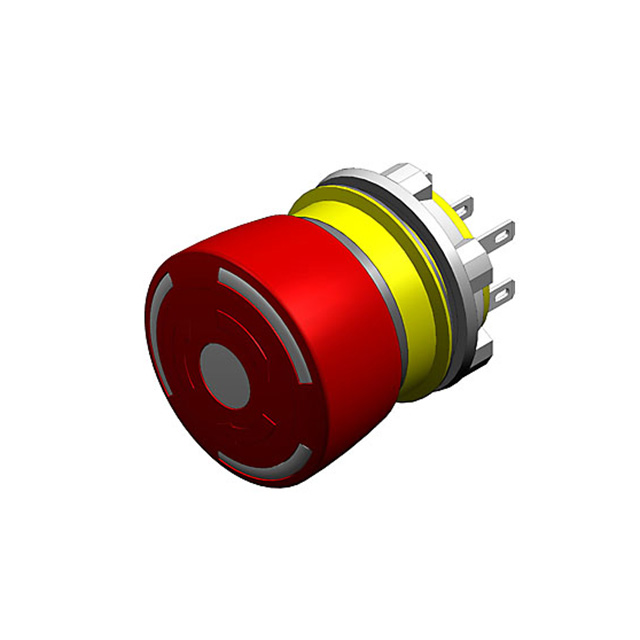

84-5031.2B20
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
84-5031.2B20
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 84-5031.2B20 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Features | Illuminated (Red) |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 58.22 | |
| 5 | $ 53.96 | |||
| 10 | $ 49.70 | |||
| 25 | $ 46.15 | |||
| 50 | $ 42.60 | |||
| 100 | $ 40.47 | |||
84-5031 Series
SWITCH ESTOP TWIST RESET 5A 250V
| Part | Ingress Protection | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Reset Operation | Voltage Rating - DC | Termination Style | Features | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 84-5031.2B20 | IP65 - Dust Tight, Water Resistant | DPST-NO/NC | 65 °C | -25 °C | Panel Mount, Front | 5 A | 250 V | 22.3 mm | Twist | 250 V | Quick Connect - 0.110" (2.8mm) | Illuminated (Red) | Off-On, On-Off |
Description
General part information
84-5031 Series
SWITCH ESTOP TWIST RESET 5A 250V
