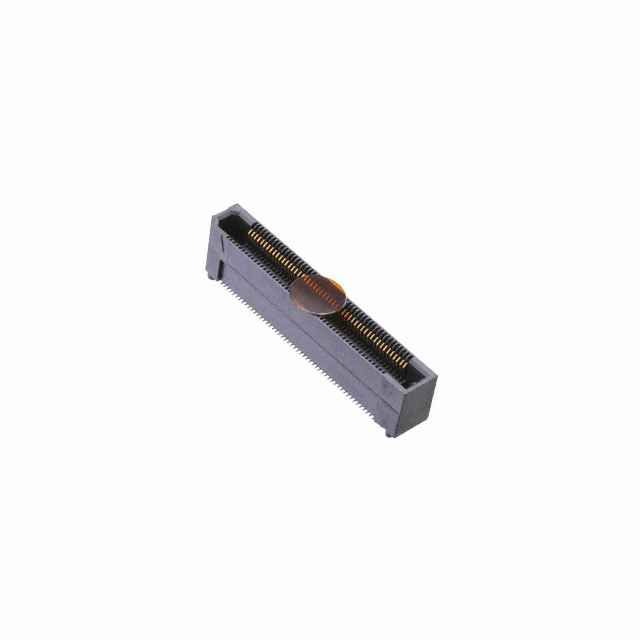

ERF5-050-07.0-L-DV-K-TR

Active

Samtec Inc.

CONN HIGH SPEED SOCKET STRIP SKT 100 POS 0.5MM SOLDER ST SMD T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HIGH SPEED SOCKET STRIP SKT 100 POS 0.5MM SOLDER ST SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	ERF5-050-07.0-L-DV-K-TR

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Pick and Place, Board Guide
Height Above Board [z]	6.9 mm
Height Above Board [z]	0.272 in
Mated Stacking Heights	11 mm, 12 mm, 9 mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Pitch [x]	Pitch [x]	Mounting Type	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Connector Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Height Above Board
Samtec Inc. ERF5-050-07.0-L-DV-K-TR	0.5 mm	0.02 in	Surface Mount	Board Guide Pick and Place	2	10 Áin	0.25 Ám	9 mm 11 mm 12 mm	Socket Center Strip Contacts	Gold	6.9 mm	0.272 in	100
Samtec Inc. ERF5-050-05.0-L-DV-WT-TR	0.5 mm	0.02 in	Surface Mount	Board Guide Solder Retention	2	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Socket Center Strip Contacts	Gold	4.9 mm	0.193 in	100
Samtec Inc. ERF5-050-01-L-D-RA	0.5 mm	0.02 in	Surface Mount Right Angle	Board Guide	2	10 Áin	0.25 Ám		Socket Center Strip Contacts	Gold		0.187 in	100	4.75 mm
Samtec Inc. ERF5-050-01-L-D-RA-TR	0.5 mm	0.02 in	Surface Mount Right Angle	Board Guide	2	10 Áin	0.25 Ám		Socket Center Strip Contacts	Gold		0.187 in	100	4.75 mm
Samtec Inc. ERF5-050-07.0-L-DV	0.5 mm	0.02 in	Surface Mount	Board Guide	2	10 Áin	0.25 Ám	9 mm 11 mm 12 mm	Socket Center Strip Contacts	Gold	6.9 mm	0.272 in	100
Samtec Inc. ERF5-050-05.0-L-DV-TR	0.5 mm	0.02 in	Surface Mount	Board Guide	2	10 Áin	0.25 Ám	7 mm 9 mm 10 mm	Socket Center Strip Contacts	Gold	4.9 mm	0.193 in	100
Samtec Inc. ERF5-050-05.0-S-DV-K-TR	0.5 mm	0.02 in	Surface Mount	Board Guide Pick and Place	2	30 Áin	0.76 Ám	7 mm 9 mm 10 mm	Socket Center Strip Contacts	Gold	4.9 mm	0.193 in	100
