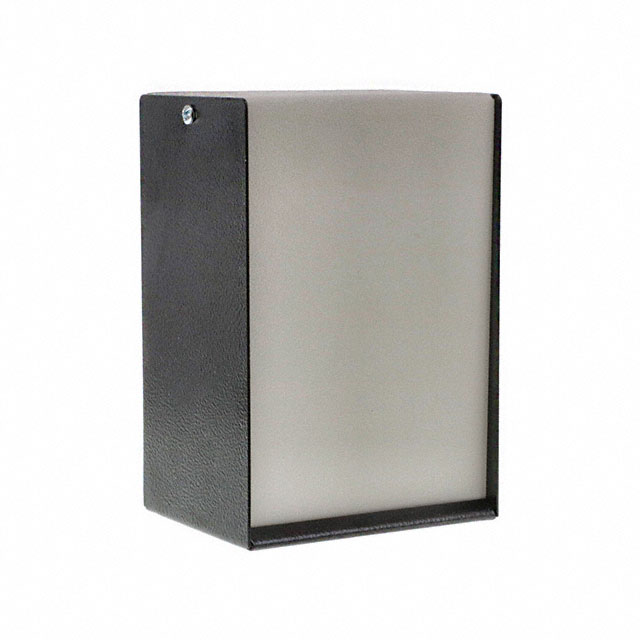

1454M

Active

Hammond Manufacturing

BOX STEEL BLK/GRY 4"L X 3.25"W

Deep-Dive with AI

Search across all available documentation for this part.

1454M

Active

Hammond Manufacturing

BOX STEEL BLK/GRY 4"L X 3.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1454M	1454 Series

Area (L x W)	13 in²	11 - 61.5 in˛
Area (L x W)	84 cm²	71 - 632 cm˛
Area (L x W)	-	170 cm²
Area (L x W)	-	26.3 - 98 in²
Area (L x W)	-	49.5 in²
Area (L x W)	-	319 cm²
Area (L x W)	-	52.5 in²
Area (L x W)	-	339 cm²
Container Type	Box	Box
Design	U Shaped Pieces	U Shaped Pieces
Height [z]	152.4 mm	50.8 - 190.5 mm
Height [z]	6 in	2 - 101.6 in
Material	Metal, Steel	Metal, Steel
Size / Dimension	-	95.25 - 133.35 mm
Size / Dimension [x]	101.6 mm	12.25 - 260.35 mm
Size / Dimension [x]	4 in	4 - 12.5 "
Size / Dimension [y]	82.55 mm	69.85 - 203.2 mm
Size / Dimension [y]	3.25 "	3.25 - 133.35 "
Thickness	20	20
Weight	-	0.5 - 1.5 lbs
Weight	-	226.8 - 680.4 g

1454 Series

BOX STEEL BLK/GRY 10.25"L X 6"W

Part	Container Type	Design	Thickness	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Weight	Weight	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1454S	Box	U Shaped Pieces	20	76.2 mm	3 in	61.5 in˛	397 cm˛	0.5 lbs	226.8 g	Metal, Steel	260.35 mm	152.4 mm	6 "	10.25 "
Hammond Manufacturing 1454R	Box	U Shaped Pieces	20	190.5 mm	7.5 in					Metal, Steel	133.35 mm	127 mm	5 "	5.25 "	170 cm²	26.3 in²
Hammond Manufacturing 1454J	Box	U Shaped Pieces	20	101.6 mm	101.6 mm	13 in²	84 cm²			Metal, Steel	101.6 mm	82.55 mm	3.25 "	4 in
Hammond Manufacturing 1454W	Box	U Shaped Pieces	20	76.2 mm	3 in		632 cm²	0.5 lbs	226.8 g	Metal, Steel	12.25 "	203.2 mm	8 in	12.5 "		98 in²
Hammond Manufacturing 1454K	Box	U Shaped Pieces	20	63.5 mm	2.5 in	30 in˛	194 cm˛			Metal, Steel	203.2 mm		3.75 "	8 "			95.25 mm
Hammond Manufacturing 1454L	Box	U Shaped Pieces	20	101.6 mm	101.6 mm	31.3 in²	202 cm²			Metal, Steel	158.75 mm	127 mm	5 "	6.25 "
Hammond Manufacturing 1454H	Box	U Shaped Pieces	20	63.5 mm	2.5 in	38.7 in˛	250 cm˛	1.5 lb	680.4 g	Metal, Steel	196.85 mm	127 mm	5 "	7.75 "
Hammond Manufacturing 1454N	Box	U Shaped Pieces	20	76.2 mm	3 in			0.5 lbs	226.8 g	Metal, Steel	209.55 mm	152.4 mm	6 "	8.25 in				49.5 in²	319 cm²
Hammond Manufacturing 1454P	Box	U Shaped Pieces	20	88.9 mm	3.5 in					Metal, Steel	254 mm		133.35 mm	10 in			133.35 mm			52.5 in²	339 cm²
Hammond Manufacturing 1454M	Box	U Shaped Pieces	20	152.4 mm	6 in	13 in²	84 cm²			Metal, Steel	101.6 mm	82.55 mm	3.25 "	4 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.03
		10	$ 23.85
		100	$ 21.46

Description

General part information

1454 Series

Box Metal, Steel Black, Gray U Shaped Pieces 4.000" L x 3.250" W (101.60mm x 82.55mm) X 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
