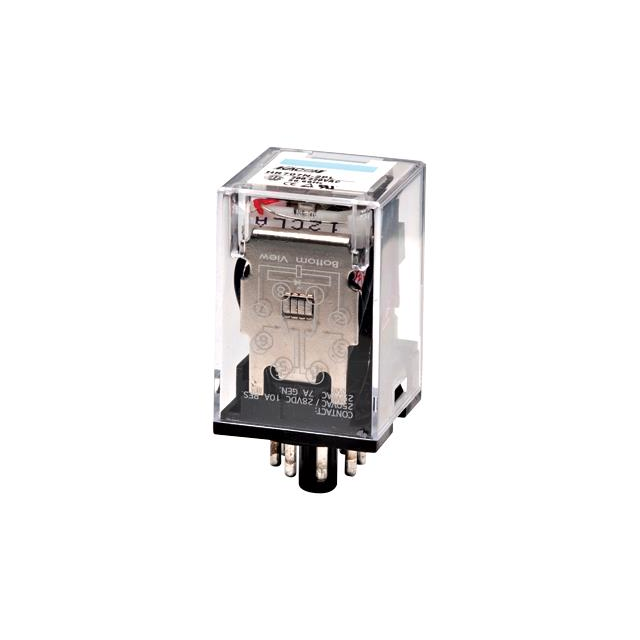

HR707N-2PLC-110VAC

Active

Kacon

RELAY GEN PURPOSE DPDT 10A 110V

Search across all available documentation for this part.

Active

Kacon

RELAY GEN PURPOSE DPDT 10A 110V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HR707N-2PLC-110VAC	HR707N Series

Coil Current	21.8 mA	10.9 - 100 mA
Coil Voltage	110 VAC/DC	24 - 220 VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C), 3PDT (3 Form C)
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Contact Rating (Current)	10 A	10 A
Features	Lighted Indicator, Surge Protection	Lighted Indicator, Diode, Surge Protection
Mounting Type	Socketable	Socketable
Operate Time	30 ms	30 ms
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	-10 °C	-10 °C
Relay Type	General Purpose	General Purpose
Release Time	20 ms	20 ms
Switching Voltage	250 VAC, 250 VDC	250 VAC
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal), Plug In, 11 Pin (Octal)

RELAY GEN PURPOSE DPDT 10A 24V

Part	Coil Voltage	Coil Current	Mounting Type	Features	Switching Voltage	Termination Style	Relay Type	Release Time	Contact Form	Contact Rating (Current)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time
Kacon HR707N-2PLD-24VDC	24 VDC	66.7 mA	Socketable	Diode, Lighted Indicator	250 VAC, 250 VDC	Plug In, 8 Pin (Octal)	General Purpose	20 ms	DPDT (2 Form C)	10 A	Gold (Au), Silver (Ag)	-10 °C	40 °C	30 ms
Kacon HR707N-2PL-24VAC	24 VAC	100 mA	Socketable	Lighted Indicator	250 VAC, 250 VDC	Plug In, 8 Pin (Octal)	General Purpose	20 ms	DPDT (2 Form C)	10 A	Gold (Au), Silver (Ag)	-10 °C	40 °C	30 ms
Kacon HR707N-2PLC-220VAC	220 VAC/DC	10.9 mA	Socketable	Lighted Indicator, Surge Protection	250 VAC, 250 VDC	Plug In, 8 Pin (Octal)	General Purpose	20 ms	DPDT (2 Form C)	10 A	Gold (Au), Silver (Ag)	-10 °C	40 °C	30 ms
Kacon HR707N-3PL-110VAC	110 VAC/DC	21.8 mA	Socketable	Lighted Indicator	250 VAC, 250 VDC	Plug In, 11 Pin (Octal)	General Purpose	20 ms	3PDT (3 Form C)	10 A	Gold (Au), Silver (Ag)	-10 °C	40 °C	30 ms
Kacon HR707N-2PL-110VAC	110 VAC/DC	21.8 mA	Socketable	Lighted Indicator	250 VAC, 250 VDC	Plug In, 8 Pin (Octal)	General Purpose	20 ms	DPDT (2 Form C)	10 A	Gold (Au), Silver (Ag)	-10 °C	40 °C	30 ms
Kacon HR707N-2PLC-110VAC	110 VAC/DC	21.8 mA	Socketable	Lighted Indicator, Surge Protection	250 VAC, 250 VDC	Plug In, 8 Pin (Octal)	General Purpose	20 ms	DPDT (2 Form C)	10 A	Gold (Au), Silver (Ag)	-10 °C	40 °C	30 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 16.12

General part information

General Purpose Relay DPDT (2 Form C) 110VAC Coil Socketable
