1-1104204-1
ActiveTE Connectivity AMP Connectors

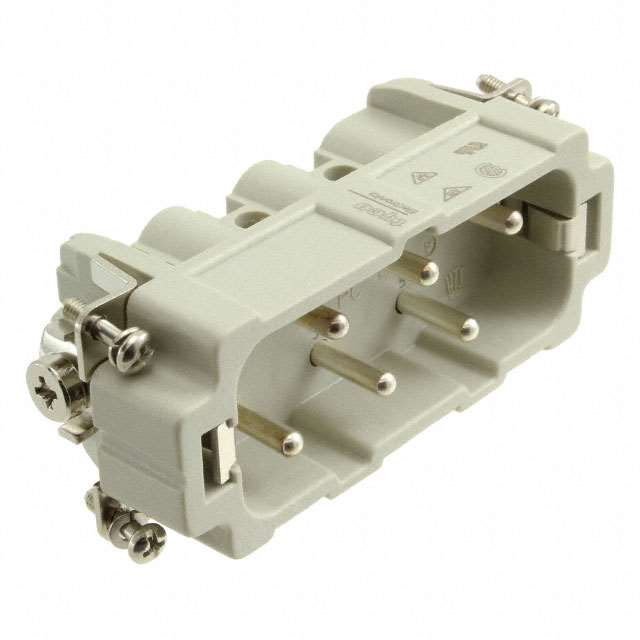

INSERT MALE 6POS+1GND SCREW
Deep-Dive with AI
Search across all available documentation for this part.
1-1104204-1
ActiveTE Connectivity AMP Connectors
INSERT MALE 6POS+1GND SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1104204-1 |
|---|---|
| Color | Beige |
| Contact Finish | Gold |
| Current Rating (Amps) | 35 A |
| Gender | Male |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 6+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 6 |
| Termination Style | Screw |
| Voltage Rating | 400 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1104204 Series
INSERT MALE 6POS+1GND SCREW
| Part | Gender | Contact Finish | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Size | Current Rating (Amps) | Color | Voltage Rating | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1104204-1 | Male | Gold | 6+Ground | 125 °C | -40 °C | UL94 V-0 | 6 | 35 A | Beige | 400 V | Screw |
Description
General part information
1104204 Series
Male Insert Beige 6+Ground Position Screw
Documents
Technical documentation and resources
No documents available
