134-1000-035
ActiveCinch Connectivity Solutions Johnson

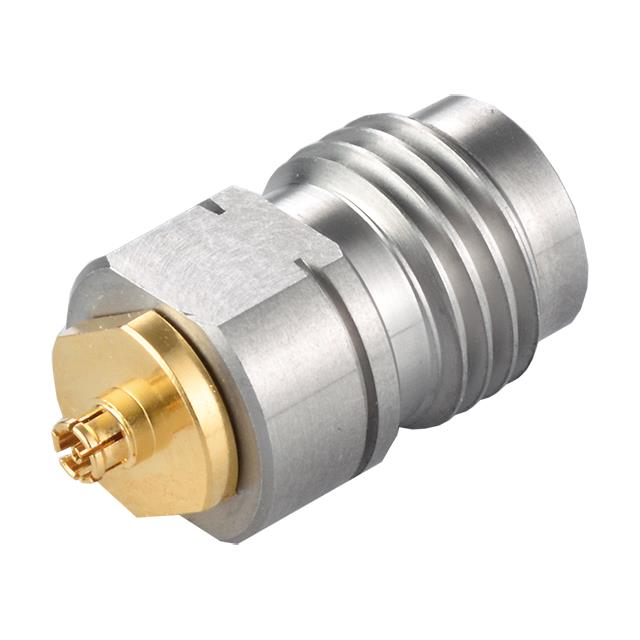

ADAPTER ASSEMBLY, 1.85MM FEMALE
Deep-Dive with AI
Search across all available documentation for this part.
134-1000-035
ActiveCinch Connectivity Solutions Johnson
ADAPTER ASSEMBLY, 1.85MM FEMALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 134-1000-035 |
|---|---|
| Adapter Series | SMP3 |
| Adapter Series | 1.85 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Gold |
| Body Material | Beryllium Copper, Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female to Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMP3 Jack, Female Socket |
| Convert To (Adapter End) | Female Socket, 1.85mm Jack |
| Dielectric Material | Polyetherimide (PEI) |
| Fastening Type | Threaded, Snap-On |
| Frequency - Max [Max] | 67 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500, 100 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 427.23 | |
| 10 | $ 395.90 | |||
| 25 | $ 381.66 | |||
Description
General part information
134-1000-035
Adapter Coaxial Connector SMP3 Jack, Female Socket To 1.85mm Jack, Female Socket 50 Ohms
