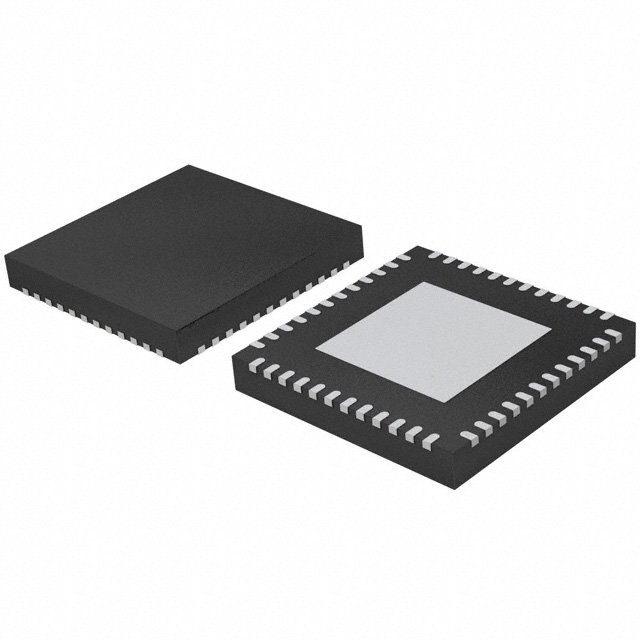

TFA9812HN/N1,557

Obsolete

NXP USA Inc.

IC AMP CLASS D STER 15W 48HVQFN

Search across all available documentation for this part.

Obsolete

NXP USA Inc.

IC AMP CLASS D STER 15W 48HVQFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TFA9812HN/N1,557	TFA981 Series

Features	Depop, Short-Circuit and Thermal Protection, Digital Inputs, I2S, Mute, Volume Control, I2C	Depop, Short-Circuit and Thermal Protection, Digital Inputs, I2S, Mute, Volume Control, I2C, Differential Inputs
Max Output Power x Channels @ Load	15 W	15 - 18 W
Max Output Power x Channels @ Load	-	2
Max Output Power x Channels @ Load [custom]	8 Ohm	8 Ohm
Max Output Power x Channels @ Load [x]	2	2
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	2-Channel (Stereo)	2-Channel (Stereo)
Package / Case	48-VFQFN Exposed Pad	48-VFQFN Exposed Pad, 32-SOIC
Package / Case	-	0.295 in
Package / Case	-	7.5 mm
Supplier Device Package	48-HVQFN (7x7)	48-HVQFN (7x7), 32-SO
Type	Class D	Class D
Voltage - Supply [Max]	20 V	20 V
Voltage - Supply [Min]	8 V	8 V

IC AMP CLASS D STER 15W 48HVQFN

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Package / Case	Features	Max Output Power x Channels @ Load [x]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Type	Supplier Device Package	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Max Output Power x Channels @ Load [custom]	Package / Case	Package / Case
NXP USA Inc. TFA9812HN/N1,518	8 V	20 V	48-VFQFN Exposed Pad	Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Volume Control	2	15 W	8 Ohm	Class D	48-HVQFN (7x7)	2-Channel (Stereo)	85 °C	-40 °C	Surface Mount
NXP USA Inc. TFA9815T/N1,112	8 V	20 V	32-SOIC	Differential Inputs, Short-Circuit and Thermal Protection		18 W		Class D	32-SO	2-Channel (Stereo)	85 °C	-40 °C	Surface Mount	2	0.295 in	7.5 mm
NXP USA Inc. TFA9812HN/N1,557	8 V	20 V	48-VFQFN Exposed Pad	Depop, Digital Inputs, I2C, I2S, Mute, Short-Circuit and Thermal Protection, Volume Control	2	15 W	8 Ohm	Class D	48-HVQFN (7x7)	2-Channel (Stereo)	85 °C	-40 °C	Surface Mount
NXP USA Inc. TFA9810T/N1,112	8 V	20 V	32-SOIC	Differential Inputs, Short-Circuit and Thermal Protection	2	15 W	8 Ohm	Class D	32-SO	2-Channel (Stereo)	85 °C	-40 °C	Surface Mount		0.295 in	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class D 48-HVQFN (7x7)
