8469MN 0081000

Active

Belden Inc.

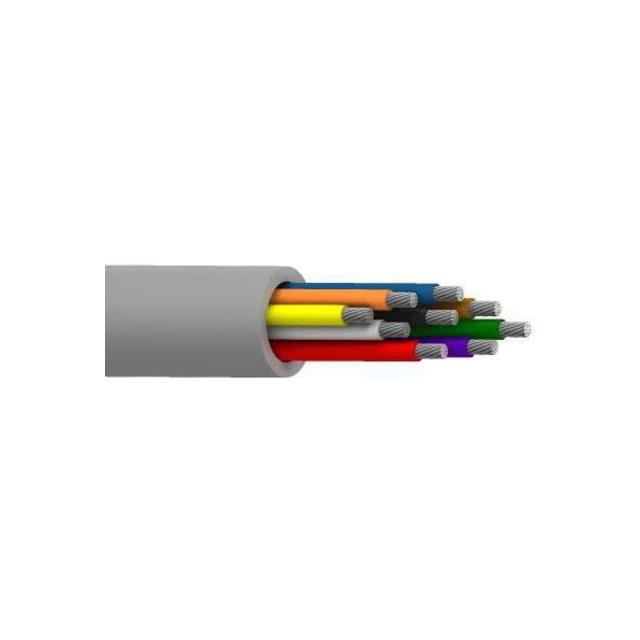

CABLE 9COND 18AWG GRAY

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	8469MN 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41 strands
Conductor Strand [custom]	34 AWG
Jacket (Insulation) Diameter [diameter]	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	9
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2937
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	18 AWG

Part	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Conductor Material	Voltage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Jacket (Insulation) Material	Usage	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Cable Type	Length	Length
Belden Inc. 8469MN 008100	UL Style 2937	0.406 mm	0.016 in	30.5 m	100 ft	Copper Tinned	300 V	Polypropylene (PP)	6.99 mm	0.275 in	41 strands	34 AWG	Gray	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	9	-20 C	80 C	18 AWG	Multi-Conductor
Belden Inc. 8469MN 006100	UL Style 2937	0.406 mm	0.016 in	30.5 m	100 ft	Copper Tinned	300 V	Polypropylene (PP)	6.99 mm	0.275 in	41 strands	34 AWG	Blue	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	9	-20 C	80 C	18 AWG	Multi-Conductor
Belden Inc. 8469MN 0081000	UL Style 2937	0.406 mm	0.016 in			Copper Tinned	300 V	Polypropylene (PP)	6.99 mm	0.275 in	41 strands	34 AWG	Gray	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	9	-20 C	80 C	18 AWG	Multi-Conductor	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 3.67

General part information

9 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
