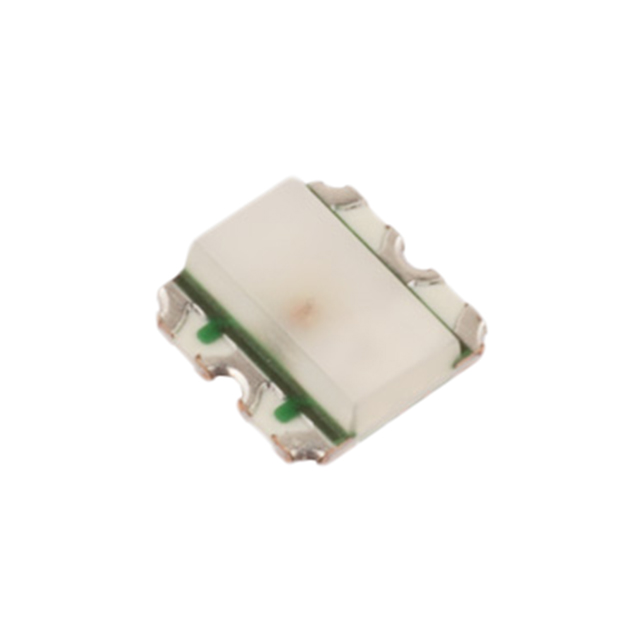

ARGB1313HS-TR

Active

Stanley Electric Co

LED RGB DIFFUSED SMD

Search across all available documentation for this part.

Active

Stanley Electric Co

LED RGB DIFFUSED SMD

Technical Specifications

Parameters and characteristics for this part

Specification	ARGB1313HS-TR

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	22 mA
Current - Test [custom]	12 mA
Current - Test [custom]	26 mA
Height (Max) [Max]	0.6 mm
Lens Color	White
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	180 mcd, 850 mcd, 450 mcd
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead
Size / Dimension [x]	2.04 mm
Size / Dimension [y]	2.04 mm
Voltage - Forward (Vf) (Typ) [custom]	2.1 V
Voltage - Forward (Vf) (Typ) [custom]	3.2 V
Voltage - Forward (Vf) (Typ) [custom]	3.1 V

LED RGB DIFFUSED SMD

Part	Configuration	Millicandela Rating	Color	Size / Dimension [x]	Size / Dimension [y]	Height (Max) [Max]	Lens Style	Mounting Type	Lens Transparency	Lens Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Package / Case
Stanley Electric Co ARGB1313HS-TR	Independent	180 mcd, 450 mcd, 850 mcd	Blue, Green, Red	2.04 mm	2.04 mm	0.6 mm	Rectangle with Flat Top	Surface Mount	Diffused	White	2.1 V	3.2 V	3.1 V	22 mA	12 mA	26 mA	6-SMD, No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Red, Green, Blue (RGB) 622nm Red, 527nm Green, 473nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.1V Blue 6-SMD, No Lead
