T37000-03-0

Active

Curtis Industries

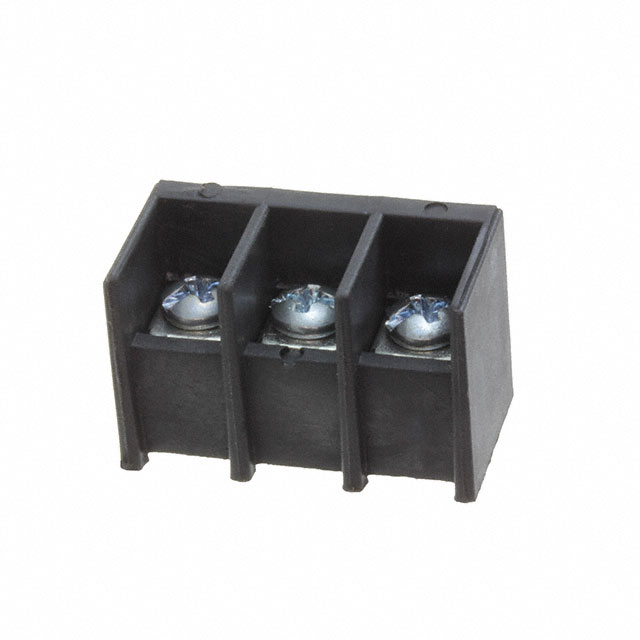

CONN BARRIER STRIP 3CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T37000-03-0

Active

Curtis Industries

CONN BARRIER STRIP 3CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.26
		10	$ 1.73
		25	$ 1.62
		50	$ 1.44
		100	$ 1.41
		250	$ 1.38

Description

General part information

T37000 Series

3 Circuit 0.375" (9.53mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T37000-03-0	T37000 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	Closed	Closed
Current Rating (Amps)	20 A	20 A
Features	Flange	Flange
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	3	1 - 23
Number of Rows	1	1
Number of Wire Entries	3	2 - 20
Number of Wire Entries	-	1 - 23
Operating Temperature	105 C	105 C
Pitch [x]	9.53 mm	9.53 mm
Pitch [x]	0.375 in	0.375 in
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel
Terminal Screw Material	Steel	Steel
Top Termination	Screws	Screws
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

T37000 Series

CONN BARRIER STRP 13CIRC 0.375"

Part	Terminal Screw Material	Mounting Type	Terminal Block Type	Number of Circuits	Material - Insulation	Current Rating (Amps)	Barrier Type	Number of Wire Entries	Voltage Rating	Number of Rows	Features	Bottom Termination	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Pitch [x]	Pitch [x]	Operating Temperature	Top Termination	Terminal Screw Finish	Number of Wire Entries [custom]
Curtis Industries T37000-13-0	Steel	Chassis, Panel	Barrier Block	13	Polypropylene (PP)	20 A	3 Wall (Tri)	13	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-19-0	Steel	Chassis, Panel	Barrier Block	19	Polypropylene (PP)	20 A	3 Wall (Tri)	19	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-01-0	Steel	Chassis, Panel	Barrier Block	1	Polypropylene (PP)	20 A	3 Wall (Tri)		300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0			105 C	Screws	Nickel	1
Curtis Industries T37000-10-0	Steel	Chassis, Panel	Barrier Block	10	Polypropylene (PP)	20 A	3 Wall (Tri)	10	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-18-0	Steel	Chassis, Panel	Barrier Block	18	Polypropylene (PP)	20 A	3 Wall (Tri)	18	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-23-0	Steel	Chassis, Panel	Barrier Block	23	Polypropylene (PP)	20 A	3 Wall (Tri)		300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel	23
Curtis Industries T37000-03-0	Steel	Chassis, Panel	Barrier Block	3	Polypropylene (PP)	20 A	3 Wall (Tri)	3	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-16-0	Steel	Chassis, Panel	Barrier Block	16	Polypropylene (PP)	20 A	3 Wall (Tri)	16	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-02-0	Steel	Chassis, Panel	Barrier Block	2	Polypropylene (PP)	20 A	3 Wall (Tri)	2	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
Curtis Industries T37000-20-0	Steel	Chassis, Panel	Barrier Block	20	Polypropylene (PP)	20 A	3 Wall (Tri)	20	300 VDC	1	Flange	Closed	12 AWG	22 AWG	UL94 V-0	9.53 mm	0.375 in	105 C	Screws	Nickel
