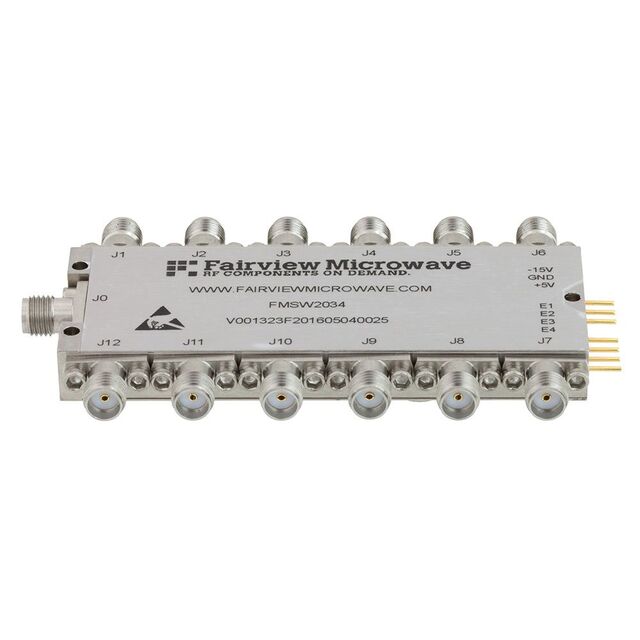

FMSW2034
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP12T 20GHZ
FMSW2034
ActiveFairview Microwave
PIN DIODE SWITCH SMA SP12T 20GHZ
Description
General part information
FMSW2034
RF Switch IC General Purpose SP12T 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | FMSW2034 |
|---|---|
| Circuit | SP12T |
| Frequency Range (Max) | 20 GHz |
| Frequency Range (Min) | 100 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 6 dB |
| Isolation (Min) | 65 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| RF Type | General Purpose |
| Test Frequency | 20 GHz |
| Topology | Absorptive |
| Voltage - Supply | 5V, -12V |
| Voltage - Supply | 5 VDC, -12 V |
