173-7-1212A

Active

Wakefield-Vette

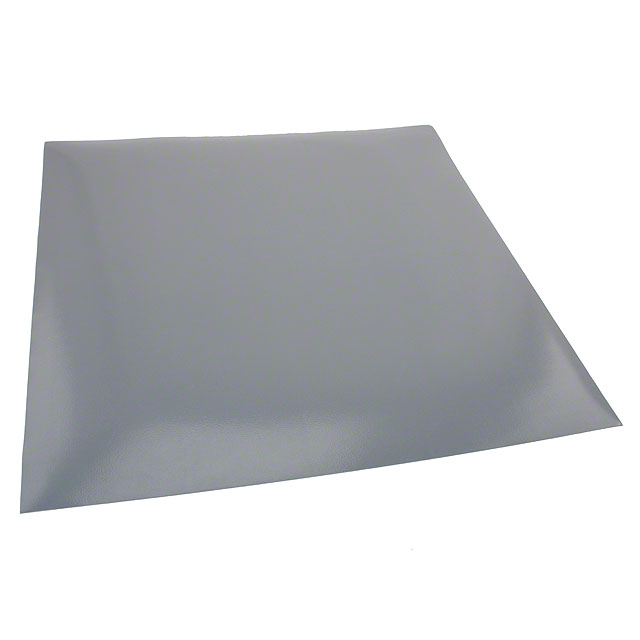

THERM PAD 304.8MMX304.8MM W/ADH

Search across all available documentation for this part.

Active

Wakefield-Vette

THERM PAD 304.8MMX304.8MM W/ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 19.1MMX12.7MM W/ADH

Part	Adhesive	Thickness	Thickness	Shape	Backing, Carrier	Outline [y]	Outline [x]	Color	Usage	Thermal Conductivity	Thermal Resistivity	Type
Wakefield-Vette 173-7-240A	Adhesive - One Side	0.178 mm	0.007 in	Rectangular	Polyimide	12.7 mm	19.1 mm	Gray	TO-220	1.2 W/m-K	0.33 °C/W
Wakefield-Vette 173-7-210P		0.178 mm	0.007 in	Rectangular	Polyimide	14.27 mm	17.45 mm	Gray	TO-220	1.2 W/m-K	0.33 °C/W
Wakefield-Vette 173-7-1212A	Adhesive - One Side	0.178 mm	0.007 in	Square	Polyimide			Gray		1.2 W/m-K	0.33 °C/W	Sheet
Wakefield-Vette 173-7-1212P		0.178 mm	0.007 in	Square	Polyimide			Gray		1.2 W/m-K	0.33 °C/W	Sheet
Wakefield-Vette 173-7-220P		0.178 mm	0.007 in	Rectangular	Polyimide	12.7 mm	17.81 mm	Gray	TO-220	1.2 W/m-K	0.33 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 45.86

General part information

Thermal Pad Gray 304.80mm x 304.80mm Square Adhesive - One Side

Technical documentation and resources
