786555-9

Active

TE Connectivity AMP Connectors

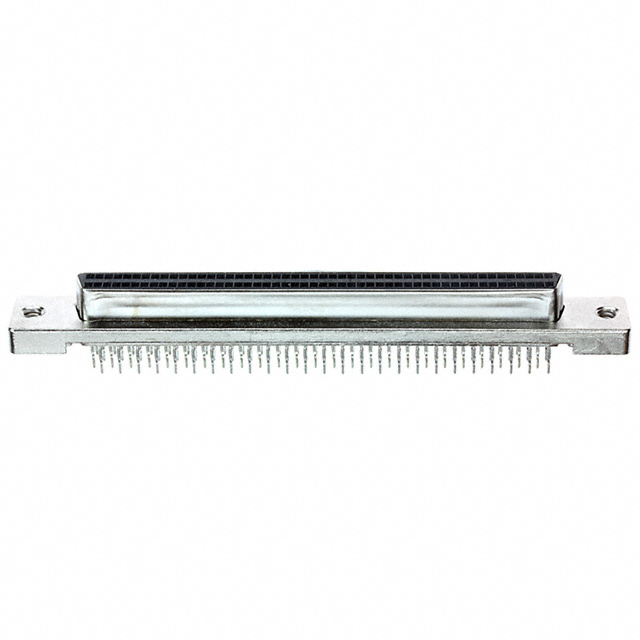

CONN D-TYPE RCPT 100POS VERT

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN D-TYPE RCPT 100POS VERT

Technical Specifications

Parameters and characteristics for this part

Specification	786555-9

Color	Black
Connector Style	D-Type
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Type	Signal
Dielectric Material	Polyphthalamide (PPA)
Features	Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	100
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [x]	0.05
Shell Size, Connector Layout [y]	0.1
Termination	Press-Fit
Voltage Rating	30 VDC

CONN D-TYPE RCPT 100POS VERT

Part	Number of Positions	Termination	Color	Connector Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [y]	Flange Feature	Contact Type	Material Flammability Rating	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish	Mounting Type	Dielectric Material	Connector Style	Contact Material	Features	Number of Rows
TE Connectivity AMP Connectors 786555-9	100	Press-Fit	Black	Receptacle, Female Sockets	0.05	0.1	Housing/Shell (4-40)	Signal	UL94 V-0	Nickel Plated, Steel	105 ░C	-55 °C	30 VDC	Gold	Through Hole	Polyphthalamide (PPA)	D-Type	Phosphor Bronze	Shielded	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	60	$ 23.19

General part information

100 Position D-Type Receptacle, Female Sockets Connector
