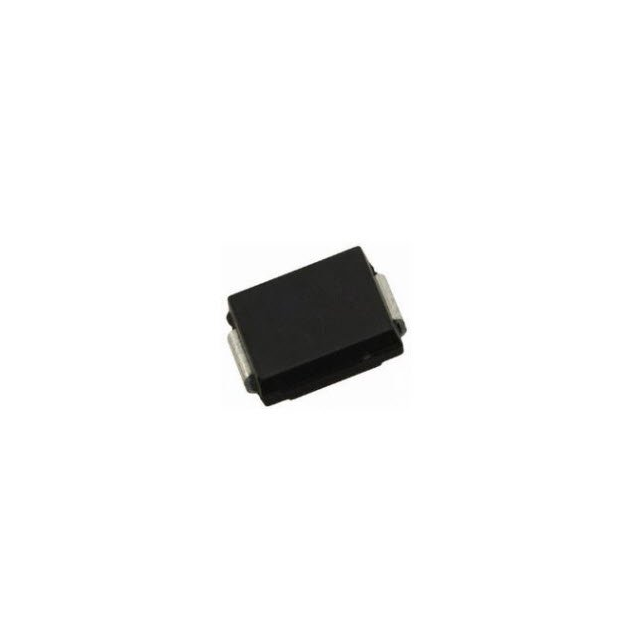

SMBJ24A

Active

Meritek

TVS DIODE 24VWM 38.9VC

Search across all available documentation for this part.

Active

Meritek

TVS DIODE 24VWM 38.9VC

Technical Specifications

Parameters and characteristics for this part

Specification	SMBJ24A

Applications	General Purpose
Current - Peak Pulse (10/1000µs)	15.42 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	DO-214AA (SMB)
Power - Peak Pulse	600 W
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	26.7 V
Voltage - Clamping (Max) @ Ipp [Max]	38.9 V
Voltage - Reverse Standoff (Typ)	24 V

TVS DIODE 24VWM 38.9VC

Part	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Type	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Voltage - Clamping (Max) @ Ipp [Max]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power - Peak Pulse
Meritek SMBJ24A	26.7 V	1	Zener	Surface Mount	15.42 A	24 V	38.9 V	General Purpose	-55 °C	150 °C	DO-214AA (SMB)	600 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

38.9V Clamp 15.42A Ipp Tvs Diode Surface Mount
