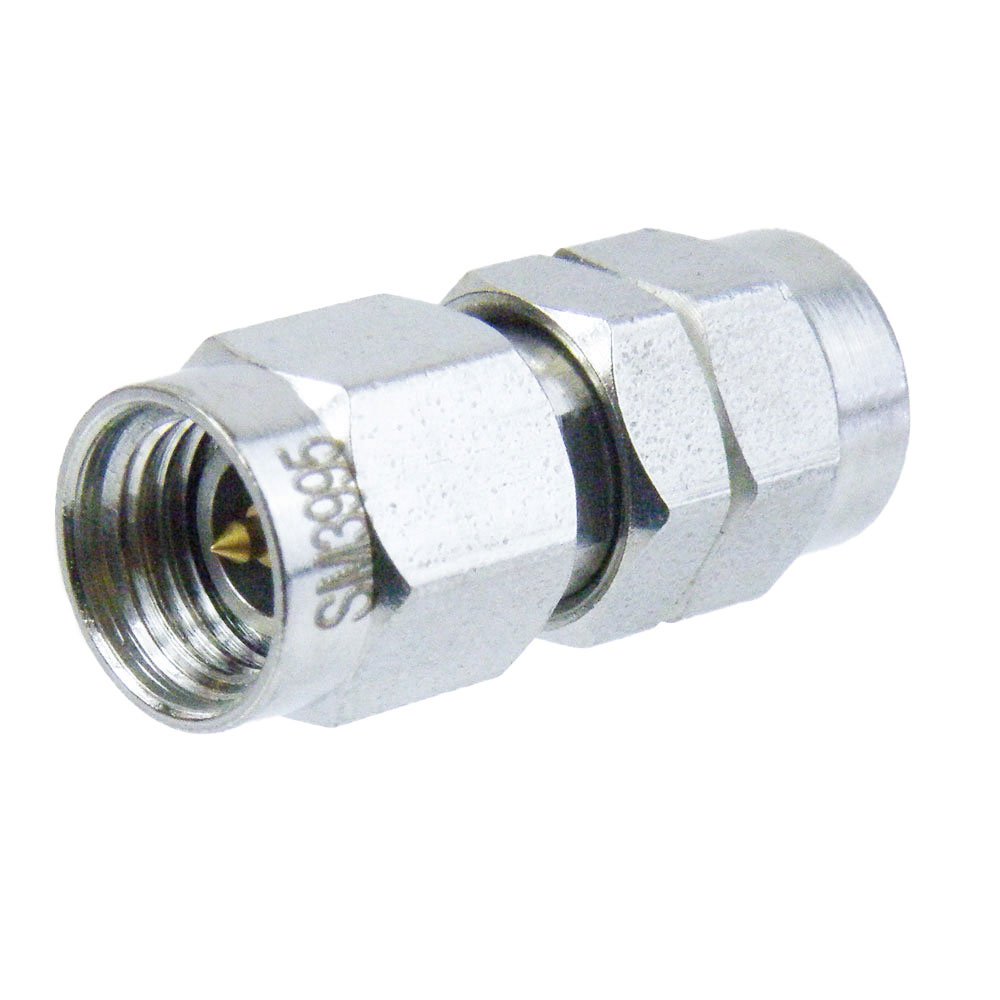

SM3995
ObsoleteFairview Microwave
ADAPT PLUG-PLUG 3.5MM SS 1.25 VS
SM3995
ObsoleteFairview Microwave
ADAPT PLUG-PLUG 3.5MM SS 1.25 VS
Description
General part information
SM3995
Adapter Coaxial Connector 1.85mm Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3995 |
|---|---|
| Adapter Series Size | 3.5 mm, 1.85 mm |
| Adapter Type | Plug to Plug |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male |
| Conversion Type | Between Series |
| Convert From (Adapter End) Plug Size | 1.85 mm |
| Convert From (Adapter End) Type | Male Pin |
| Convert To (Adapter End) | Plug, Male Pin |
| Convert To (Adapter End) Gender | Male Pin |
| Convert To (Adapter End) Size | 3.5 mm |
| Convert To (Adapter End) Type | 3.5mm Plug |
| Fastening Type | Threaded |
| Frequency - Max | 34 GHz |
| Impedance | 50 Ohm |
| Mating Cycles | 500 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
