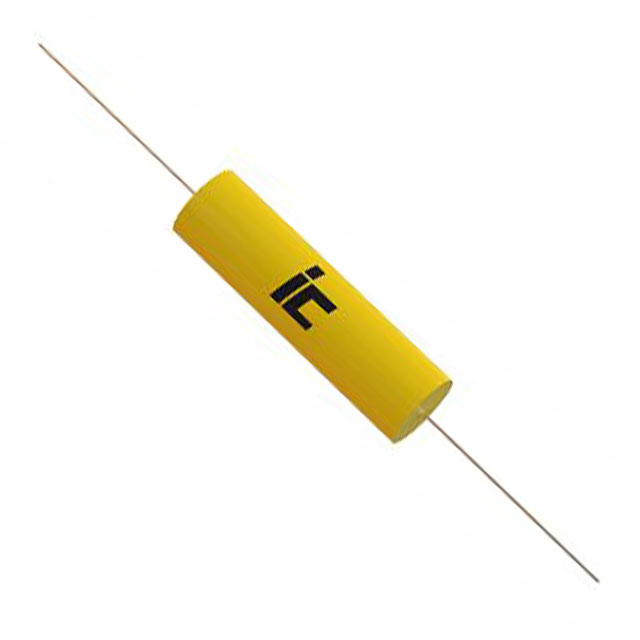

Specification	105PHC400K

Applications	Switching, DC Link, DC Filtering, High Frequency
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6.7 mOhm
Features	Low ESL, Low ESR
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Axial
Size / Dimension Diameter	0.512 in
Size / Dimension Length	1.339 in
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	400 V
