Y407782R0000B9R
ActiveVPG Foil Resistors
RESISTOR, 82R, 0.1%, 0.1W, METAL FOIL ROHS COMPLIANT: YES
Y407782R0000B9R
ActiveVPG Foil Resistors
RESISTOR, 82R, 0.1%, 0.1W, METAL FOIL ROHS COMPLIANT: YES
Description
General part information
Y407782R0000B9R

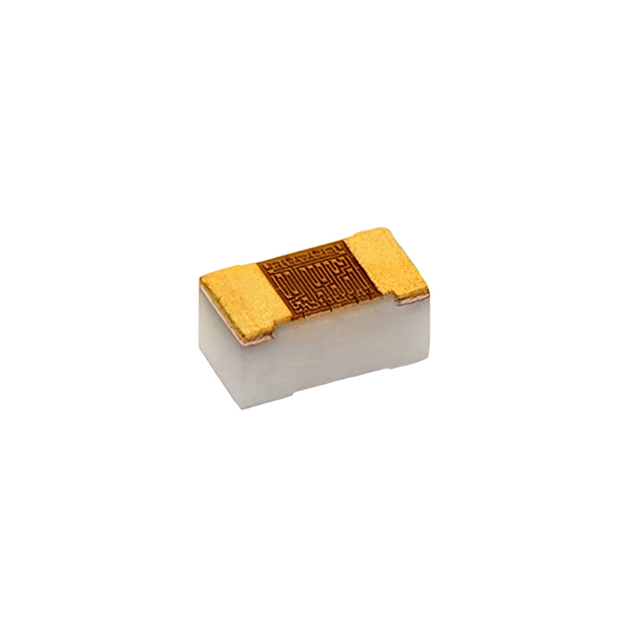

82 Ohms ±0.1% 0.1W, 1/10W Chip Resistor 0402 (1005 Metric) Non-Inductive Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | Y407782R0000B9R |
|---|---|
| Composition | Metal Foil |
| Features | Non-Inductive |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Package Name | 0402 |
| Power (Watts) | 100 mW |
| Power (Watts) Options | 1/10W |
| Resistance | 82 Ohm |
| Size / Dimension Length | 0.043 in |
| Size / Dimension Width | 0.022 in |
| Temperature Coefficient | 2.5 ppm/°C |
| Tolerance | 0.1 % |
