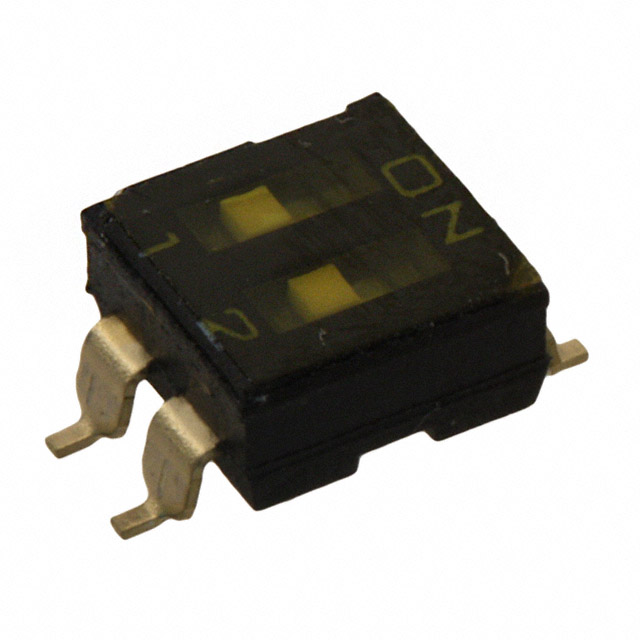

A6S-2102-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics commom to parts in this series

SWITCH SLIDE DIP SPST 0.025A 24V

Part	Mechanical Life	Length [x]	Length [x]	Voltage Rating	Termination Style	Pitch [x]	Pitch	Pitch [x]	Features	Contact Finish	Height Above Board	Height Above Board	Current Rating (Amps)	Electrical Life	Circuit	Actuator Type	Washable	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Mounting Type
Omron Electronics Inc-EMC Div A6S-2102-PH(VNM)	1000 Cycles	0.237 "	6.02 mm	24 VDC	Gull Wing	0.1 in	Full	2.54 mm	Tape Seal	Gold	3.7 mm	0.146 in	25 mA	1000 Cycles	SPST	Slide (Standard)		2	-20 C	70 °C	Flush, Recessed	Surface Mount
Omron Electronics Inc-EMC Div A6S-2102-H(VNM)	1000 Cycles	0.237 "	6.02 mm	24 VDC	Gull Wing	0.1 in	Full	2.54 mm	Tape Seal	Gold	3.7 mm	0.146 in	25 mA	1000 Cycles	SPST	Slide (Standard)		2	-20 C	70 °C	Flush, Recessed	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
