2917463

Active

Phoenix Contact

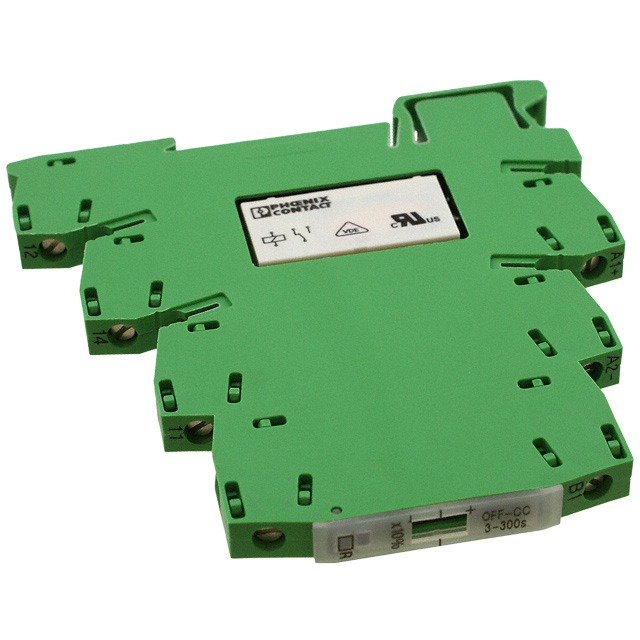

RELAY TIME DELAY 300SEC 6A 250V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY TIME DELAY 300SEC 6A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2917463	29174 Series

Contact Rating @ Voltage	6 A, 250 VAC	6 - 250 A
Delay Time [Max]	300 Sec	10 - 300 s
Delay Time [Min]	3 Sec	0.1 - 3 Sec
Function	Off-Delay	Repeat Cycle, Off-Delay, On-Delay
Mounting Type	DIN Rail	DIN Rail
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Screw Terminal	Screw Terminal
Timing Adjustment Method	Screwdriver Slot	Screwdriver Slot
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	24 VDC	24 VDC

RELAY TIME DELAY 10SEC 6A 250V

Part	Termination Style	Function	Timing Adjustment Method	Voltage - Supply	Delay Time [Min]	Delay Time [Max]	Contact Rating @ Voltage	Timing Initiate Method	Mounting Type	Relay Type
Phoenix Contact 2917492	Screw Terminal	Repeat Cycle	Screwdriver Slot	24 VDC	0.1 Sec	10 s	6 A, 250 VAC	Input Voltage	DIN Rail	Mechanical Relay
Phoenix Contact 2917450	Screw Terminal	Off-Delay	Screwdriver Slot	24 VDC	0.1 Sec	10 s	6 A, 250 VAC	Input Voltage	DIN Rail	Mechanical Relay
Phoenix Contact 2917489	Screw Terminal	Off-Delay	Screwdriver Slot	24 VDC	3 Cyc	300 Min	6 A, 250 VAC	Input Voltage	DIN Rail	Mechanical Relay
Phoenix Contact 2917405	Screw Terminal	On-Delay	Screwdriver Slot	24 VDC	3 Cyc	300 Min	6 A, 250 VAC	Input Voltage	DIN Rail	Mechanical Relay
Phoenix Contact 2917463	Screw Terminal	Off-Delay	Screwdriver Slot	24 VDC	3 Sec	300 Sec	6 A, 250 VAC	Input Voltage	DIN Rail	Mechanical Relay
Phoenix Contact 2917467	Screw Terminal	Off-Delay	Screwdriver Slot	24 VDC	0.3 Min	30 Min	6 A, 250 VAC	Input Voltage	DIN Rail	Mechanical Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Off-Delay Time Delay Relay SPDT (1 Form C) 3 Sec ~ 300 Sec Delay 6A @ 250VAC DIN Rail
