925075
ActiveTE Connectivity AMP Connectors

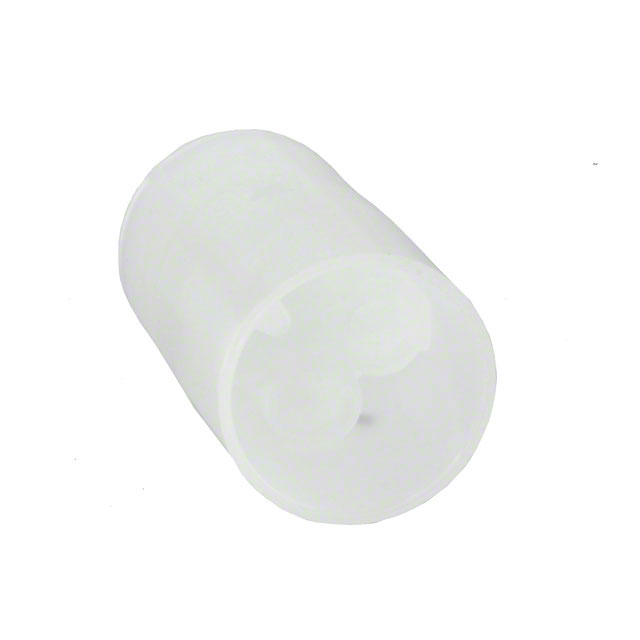

CONN CAP HSNG MALE 4POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

925075
ActiveTE Connectivity AMP Connectors
CONN CAP HSNG MALE 4POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | 925075 | 9250 Series |
---|---|---|
Color | - | Natural |
Connector Type | Cap Housing | Plug Housing, Cap Housing |
Contact Shape | Circular | Circular |
Contact Type | Crimp | Crimp |
Fastening Type | Push-Pull | Push-Pull |
For Use With/Related Products | - | Quick Connects |
For Use With/Related Products | - | 0.11 - 0.25 in |
For Use With/Related Products | - | 2.79 - 6.35 mm |
Gender | - | Female, Receptacle |
Housing Color | Natural | Natural |
Material | - | Polyamide (PA66), Nylon 6/6, Polyamide (PA), Nylon, Polyamide |
Material Flammability Rating | - | UL94 V-2 |
Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
Note | Contacts Not Included | Contacts Not Included |
Number of Positions | 4 | 1 - 4 |
Operating Temperature [Max] | 105 ░C | 105 ░C |
Operating Temperature [Min] | -55 °C | -55 °C |
Orientation | Keyed | Keyed |
Shell Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
Shielding | Unshielded | Unshielded |
Stacking Direction | - | Side to Side |
Style | - | Housing |
Terminal Size | - | 0.11 - 0.25 in |
Terminal Size | - | 2.79 - 6.35 mm |
Terminal Type | - | Disconnect, Quick Connect |
Type | For Male Pins | For Female Sockets, For Male Pins |
9250 Series
CONN RCPT HSG 0.11 3POS NATURAL
Part | Stacking Direction | Material | Note | Terminal Type | Mounting Type | Terminal Size | Terminal Size | For Use With/Related Products | For Use With/Related Products | For Use With/Related Products | Color | Gender | Style | Shielding | Housing Color | Shell Material | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Orientation | Material Flammability Rating | Contact Shape | Connector Type | Type | Contact Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 925015 | Side to Side | Polyamide (PA66), Nylon 6/6 | Contacts Not Included | Disconnect, Quick Connect | Free Hanging (In-Line) | 0.11 in | 2.79 mm | Quick Connects | 0.11 in | 2.79 mm | Natural | Female, Receptacle | Housing | |||||||||||||
TE Connectivity AMP Connectors 925076 | Contacts Not Included | Free Hanging (In-Line) | Unshielded | Natural | Polyamide (PA66), Nylon 6/6 | 4 | 105 ░C | -55 °C | Push-Pull | Keyed | UL94 V-2 | Circular | Plug Housing | For Female Sockets | Crimp | |||||||||||
TE Connectivity AMP Connectors 925016 | Side to Side | Polyamide (PA), Nylon | Contacts Not Included | Disconnect, Quick Connect | Free Hanging (In-Line) | 0.11 in | 2.79 mm | Quick Connects | 0.11 in | 2.79 mm | Natural | Female, Receptacle | Housing | 4 | ||||||||||||
TE Connectivity AMP Connectors 925075 | Contacts Not Included | Free Hanging (In-Line) | Unshielded | Natural | Polyamide (PA66), Nylon 6/6 | 4 | 105 ░C | -55 °C | Push-Pull | Keyed | Circular | Cap Housing | For Male Pins | Crimp | ||||||||||||
TE Connectivity AMP Connectors 925068 | Polyamide | Contacts Not Included | Disconnect, Quick Connect | Free Hanging (In-Line) | 0.25 in | 6.35 mm | Quick Connects | 0.25 in | 6.35 mm | Natural | Female, Receptacle | Housing | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Bulk | 1 | $ 0.80 | |
10 | $ 0.77 | |||
500 | $ 0.55 | |||
1000 | $ 0.48 | |||
5000 | $ 0.42 | |||
10000 | $ 0.40 |
Description
General part information
9250 Series
4 Position Circular Connector Cap Housing Free Hanging (In-Line)
